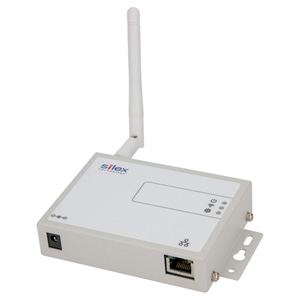

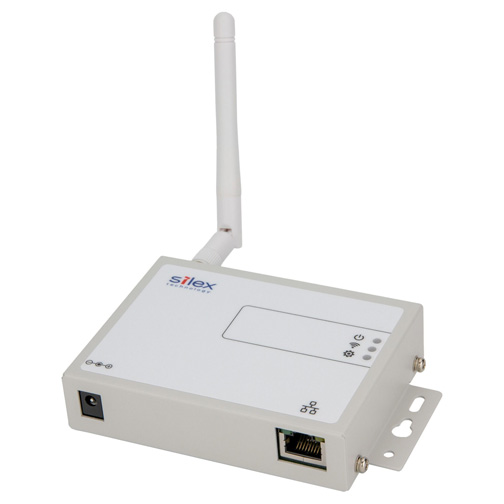

Silex BR-330AC-LP-US - BR-330AC-LP(US) - Low Power 802.11ac Enterprise Ethernet to Wireless Bridge, US SKU
by Silex
|
|
|
|
The BR-330AC-LP is the enterprise Wi-Fi 5 Ethernet to Wi-Fi bridge with the lowest power consumption in the market. It supports WPA enterprise security and TLS 1.2. The BR-330AC-LP is enabled by silex's SX-590 module which has enabled a number of medical devices with the secure and reliable wireless connectivity. Its low power operation provides users with more flexibility in its installation as the users have more options for the power supply source.
|
|
|
The BR-330AC-LP-US is the ideal solution to connect Ethernet IoT devices to a secure enterprise Wi-Fi network reliably. Thanks to its low power operation, the bridge can be powered by a battery pack for a longer duration, USB port(s) equipped on a Ethernet device etc... eliminating the dedicated AC power for the bridge.
The BR-330AC-LP is enabled by silex's Sx-590 intelligent module which has a superior track record in the medical industry to provide secure and reliable Wi-Fi connectivity to medical devices.
| Model number |
BR-330AC-LP |
| Wired LAN |
RJ-45 Connector x 1 10Base-T / 100Base-TX (Auto-detection) |
| Wireless standard |
Dual-band 802.11a/b/g/n/ac 1x1 |
| Wi-Fi security |
Authentication: WPA2-Enterprise, WPA-Enterprise , WPA2-Personal, WPA-Personal, Open
Encryption: WEP, AES, Auto |
| Channels |
2.4GHz bands
(US) CH1 - CH11
(EU) CH1-CH13
5GHz bands
(US) W52, W53, W56*, W58
(EU) W52, W53, W56**
W52: 36, 40, 44, 48
W53: 52, 56, 60, 64
W56: 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144
W58: 149, 153, 157, 161, 165
* Channel 120 - 128 is disabled to comply with Canadian regulation.
** Channel 144 is disabled for EU SKU |
Switch |
Push switch x 1 |
LED |
Power, WLAN, Status |
Storage Temperature
Humidity |
-20 ~ + 70°C
20 ~ 90% RH |
Operating Temperature
Humidity |
0 ~ + 50°C
20% ~ 80% RH (non-condensing) |
| Max # of Clients |
16 clients |
| Power |
5V DC Jack (EIAJ Class2) |
| Regulatory Compliance |
FCC Class B, ICES Class B, CE Class B, VCCI Class B, RoHS |
| Supported software |
AMC Manager® |
| Dimensions |
126mm x 76mm x 24mm |
| Weight |
255g (body) |
| Warranty |
5 years |
|
|
