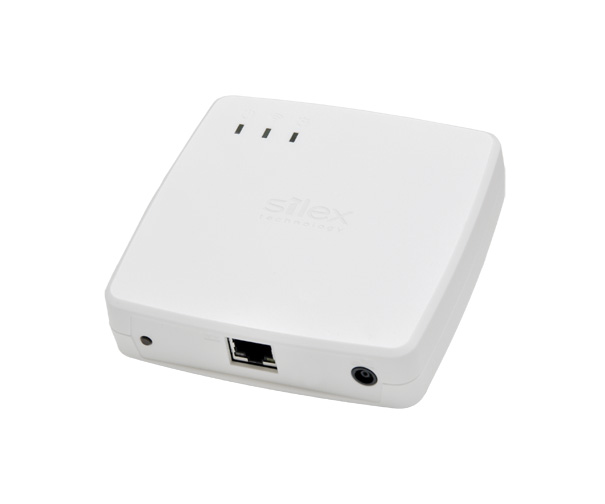

Silex BR-500AC-US

Silex BR-500AC-US - BR-500AC-US - 802.11ac wave2 2x2 MU-MIMO Ethernet to Wi-Fi bridge. Eventually, converted to MP P/N.
by Silex

BR-500AC is the first commercially available 802.11ac wave2 2x2 MU-MIMO dual-band Ethernet to Wi-Fi bridge supporting WPA3-Enterprise Wi-Fi security. Leveraging advanced features of 802.11ac wave2 standard, BR-500AC securely, reliably, and efficiently connects any Ethernet device to your wireless network enabled by a recent Wi-Fi access point.

Description
Specification
Datasheet

The BR-500AC-US allows any Ethernet-enabled device to join a secure wireless network with industry-leading security, including Wi-Fi Enhanced Open and WPA3-Enterprise with the most commonly used EAP types. Incorporating advanced features of 802.11ac wave2 such as MU-MIMO, the BR-500AC provides an efficient wireless network with recent access points. Silex's proprietary wireless radio driver enhanced from Qualcomm's driver provides a reliable wireless connection required by commercial use where the reliability counts. Install Ethernet devices wirelessly in a place where running cable is complicated.

Model Number	BR-500AC
Wired LAN	RJ-45 Connector x 1 10Base-T / 100Base-TX / 1000Base-T (Auto-detection)
Wireless Standard	Dual-band 802.11a/b/g/n/ac wave2 2x2 MU-MIMO
Wi-Fi Security	Authentication: WPA3-Enterprise, WPA2-Enterprise, WPA/WPA2-Enterprise, WPA3-Personal, WPA2-Personal, WPA/WPA2-Personal, Open Encryption: WEP, AES, Auto
Channels	2.4GHz bands (US2/US) CH1 - CH11 (EU) CH1-CH13 5GHz bands (US2) W52, W53, W56, W58 (US) W52, W53, W56, W58 (EU) W52, W53, W56* W52: 36, 40, 44, 48 W53: 52, 56, 60, 64 W56: 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144 W58: 149, 153, 157, 161, 165 * BR-500AC-US disables channel 120 - 128 to comply with Canadian regulation. ** Channel 144 is disabled for EU SKU
Switch	Push switch x 1
LED	Power, WLAN, Status
Storage Temperature Humidity	-10 ~ + 50°C 20 ~ 90% RH
Operating Temperature Humidity	0 ~ + 40°C 20% ~ 80% RH (non-condensing)
Max # of Clients	16 clients
Power	5-12V DC Jack (EIAJ Class4) (Included 12V / 6W power supply) (Y-shaped USB Power Cable available as option)
Regulatory Compliance	FCC Class B, ICES Class B, CE Class B, VCCI Class B, RoHS
Supported Software	AMC Manager®
Dimensions	110mm x 109mm x 27mm
Weight	140g (body)
Warranty	5 years
Note	Fast roaming is enabled when Wi-Fi authentication is WPA2.
