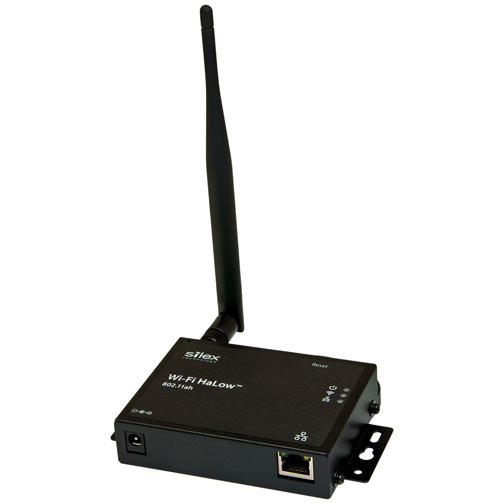

Silex BR-100AH-US - BR-100AH-US - 10/100 Ethernet to 802.11ah Ethernet to Wireless Bridge, US SKU
by Silex
|
|
|
|
BR-100AH is the first commercially available IEEE’s 802.11ah wireless enterprise bridge. It enables any Ethernet device to communicate with other 802.11ah devices over a long-range Wi-Fi HaLow network, giving you the freedom to place it anywhere in your facility. BR-100AH is all that you need to incorporate your device into your 802.11ah (HaLow) network. The BR-100AH now supports WPA3-Enterprise to make Wi-Fi HaLow technology available for enterprises that require 802.1X authentication for their IT systems.
|
|
|
The BR-100AH-US allows any Ethernet-enabled device to join a secure long-range 802.11ah WLAN network with over megabit per second data throughput. It is software transparent meaning no changes to drivers, management tools, or applications are needed. The BR-100AH operates in Multi-client mode. It can connect multiple devices, which are connected to a wired LAN port using HUB, to a wireless LAN environment.
| Model Number |
BR-100AH |
| Wired LAN |
Ethernet:
RJ-45 Connector x 1 10Base-T / 100Base-TX |
| Wireless Standard |
802.11ah (1x1) |
| Security |
Open, Enhanced Open, WPA3-Personal, WPA3-Enterprise (128-bit mode)
Encryption: AES-CCMP |
| Channels |
1 MHz, 2 MHz & 4 MHz |
Storage Temperature
Humidity |
-20 ~ + 80°C
20 ~ 90% RH |
Operating Temperature
Humidity |
0 ~ + 40°C
20% ~ 90% RH (non-condensing) |
| Range |
3km |
| Max # of Clients |
16 clients |
| Power |
5.0V ± 5% DC Jack (5.5mm x 2.1mm) |
| Regulatory Compliance |
FCC, ISED |
| Supported Software |
AMC Manager® |
| Dimensions |
126mm x 75mm x 24mm |
| Warranty |
5 years |
|
|
|
|
