FBR-100 - CNC Machine Protoco converter

Silex FBR-100 - CNC Machine Protoco converter. Bridges factory machines & monitoring systems using MTConnect to factory servers
by Silex

CNC Machine Protoco converter. Bridges factory machines and monitoring systems using MTConnect to factory servers

Description
Specification
Datasheet

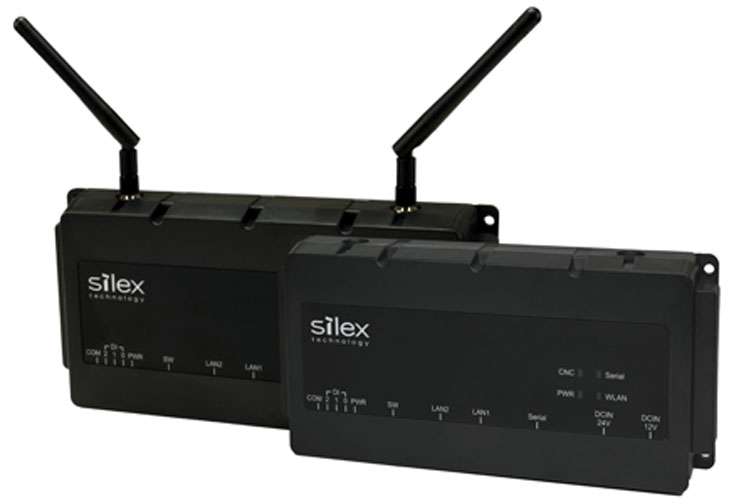

FBR-100 is FBR converter monitors operation of CNC machines, and transfers data to the factory monitoring system/server. It supports MTConnect communication protocol, which is used by major manufacturers to efficiently connect machines with their host systems. FBR converter translates the machine protocol for the monitoring host, which traditionally is done using a PC. It also supports wireless bridge functionality which eliminates the use of wiring and cables in the factory. FBR converter allows machine tool manufacturers, system integrators, and their users to collect machine tool operation data in the factory and connect to a more sophisticated wired /wireless LAN system.

Product Name	FBR-100
Wired LAN	RJ-45：×2 (MAC Addresses x2) 10Base-T / 100Base-TX / 1000Base-T (auto recognition)
Interface	D-Sub9 male: x1 (RS-232C / 422A / 485) Digital input: 3bit
Switch	PUSH switch: × 1 DIP switch: 4bit
LED	Body: × 4 (2 color LED) RJ-45: × 2 (2 color LED)
Operating Environment	Temperature：-20～+50℃ Humidity：20～90%RH(No Condensation)
Storage Environment	Temperature：-20～+55℃ Humidity：20～90%RH(No Condensation)
Power Supply	AC adapter or DC12-24V
Max. Power Consumption	24V/0.15A 12V/0.28A
External Dimension	230 * 105 * 36mm (without antenna)
Weight	440g
Included Items	Body, standard pole antenna (FBR-100AN only), setup guide, simple declaration of conformity, GPL information sheet
Certifications	[EMC] VCCI Class-A FCC Part15 Subpart B Class-A ICES-003 Issue 6 Class-A EN55032 Class-A, EN301489-17 [Radio] Japan・US・Canada・EU [RoHS] EU RoHS
Warranty	5 years
MSRP	Open
Dust / Waterproof	IP53 compliant
Vibration Resistant	Sine wave 1.0G (XY direction) 10 to 500Hz
Anti-static (Noise)	Anti-static: Contact discharge ± 4kV Air discharge ± 8kV Noise: Power supply line ± 2kV Signal line ± 1kV
Corrosion Resistant	40 ± 2 ℃ / 80 ± 5% RH / 15ppm (H2S hydrogen sulfide gas) / 96H
Software Support	Client software that supports MTConnectver.1.3.1 and later verified software: •Fanuc MT-LINKiver.3.6 and later •iQEdgecrossMTConnectData Collector ver1.1.3.0 and later •Device Explorer OPC server V6.2.0 and later and Device Gateway V2.2.0 and later (Takebishi) •IoT Data Share Ver.1.14.1 and later (Denso wave)
