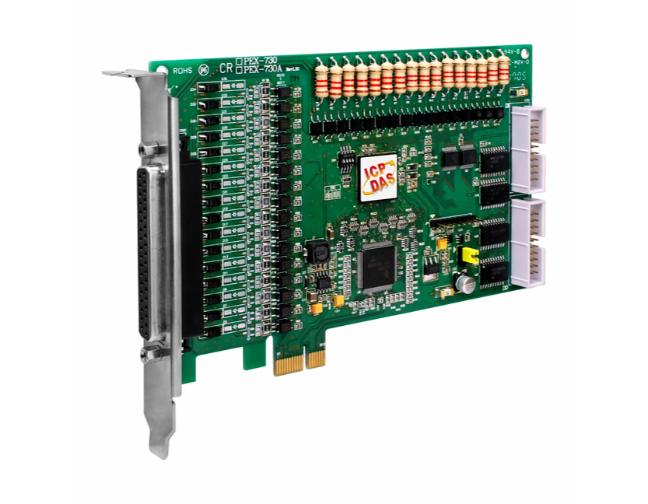

PEX-730A - PCI Express, 32-channel Isolated Digital I/O and 32-channel TTL Digital I/OBoard.
by ICP DAS
|
|
|
|
PEX-730A_SUMMARY.html
- Support the + 5 V PCI bus for PISO-730A/730A-5V
- Support PCI Express x1 for PEX-730A
- 16-channel Optically-isolated Digital Input
- 16-channel Optically-isolated Digital Output (Source, PNP)
- 16-channel 5 V/TTL Digital Output
- 16-channel 5 V/TTL Digital Input
- 3750 Vrms photo-isolation protection
- Interrupt source: 2 channels
- Output status readback function for PEX-730A
- Card ID function for PEX-730A
- SMD, short card, power saving
- Supports Plug & Play to obtain I/O resources
- No more manually setting of I/O address and IRQ
|
|
|
PEX-730A_DESCRIPTION.html
PEX-730A cards provide 32-channel isolated digital I/O (16 x DI and 16 x DO) and 32-channel TTL-level digital I/O
(16 x DI and 16 x DO). The isolated DI and DO channels are a short optical transmission path that transfers an
electronic signal between the elements of a circuit, keeping them electrically isolated. With 3750 Vrms isolation
protection, these DIO channels allow the input signals to be completely floated, preventing ground loops and isolating
the host computer from damaging voltages. Each digital output offers a Darlington (NPN) transistor and integrated
suppression diode for the inductive load. The open collector outputs (DO channels) functions as an alarm and warning
notification, signal output control, control for external circuits that require a higher voltage level, and signal
transmission applications, etc.
PEX-730A.html
|
Isolation Voltage
|
3750 Vrms
|
|
Channels
|
16
|
|
Compatibility
|
Optical
|
|
Output Voltage
|
Logic 0: 0 ~ 1 V
Logic 1: 9 ~ 24 V
(Logic 1: Min. 7 V; Max. 30 V)
|
|
Input Impedance
|
1.2 KΩ, 1 W
|
|
Response Speed
|
4 kHz (Typical)
|
|
Isolation Voltage
|
3750 Vrms
|
|
Channels
|
16
|
|
Compatibility
|
Source (PNP), Open Collector
|
|
Output Capability
|
100 mA/+30 V for each channel @ 100% duty
|
|
Response Speed
|
4 kHz (Typical)
|
|
Non-isolated Digital Input
|
|
Channels
|
16
|
|
Compatibility
|
5V/TTL
|
|
Input Voltage
|
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
|
|
Response Speed
|
1.2 MHz (Typical)
|
|
Non-isolated Digital Output
|
|
Channels
|
16
|
|
Compatibility
|
5V/TTL
|
|
Output Voltage
|
Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
|
|
Output Capability
|
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
|
|
Response Speed
|
1.2 MHz (Typical)
|
|
Bus Type
|
PCI Express x 1
|
|
Data Bus
|
8-bit
|
|
Card ID
|
Yes (4-bit)
|
|
I/O Connector
|
Female DB37 x 1
20-pin box header x 2
|
|
Dimensions (L x W x D)
|
163 mm x 110 mm x 22 mm
|
|
Power Consumption
|
640 mA @ +5 V
|
|
Operating Temperature
|
0 ~ 60C
|
|
Storage Temperature
|
-20 ~ 70C
|
|
Humidity
|
5 ~ 85% RH, non-condensing
|
|
