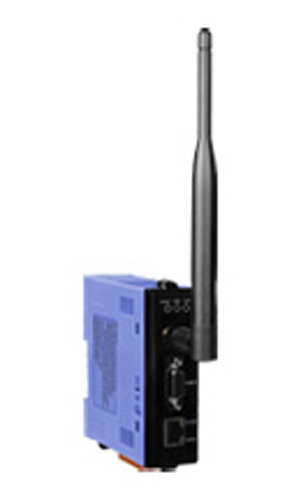

ZT-2570 - Ethernet / RS 485 / RS 232 to ZigBee Host Converter by ICP DAS

ZT-2570 - Ethernet / RS 485 / RS 232 to ZigBee Host Converter
by ICP DAS

Write a review Write a review

Ethernet/RS-485/RS-232 to ZigBee Host Converter (ZigBee Wireless Host, ZigBee Wireless Coordinator), supports operating temperatures from -25 ~ +75°C, communication distance up to 700 meters (2297 feet).



Mfg SKU # : ZT-2570
List Price : $609.00
Our Price : $597.00
Stock : 3
Quantity :

The ZT-2570 ZigBee wireless module is a compact ZigBee host wireless converter that allows RS-232, RS-485 and Ethernet interface to be converted to a personal area ZigBee wireless network. The communication distance for our ZigBee wireless products is up to 700 meters or 2297 feet (Line of Sight), with a transmission frequency range of between 2.405 GHz and 2.48 GHz, separated into 5 MHz sectors, providing 16 channels and 16384 PAN IDs. The ZT-2570 ZigBee host converter can also work as a ZigBee wireless router to extend the communication range and improve the ZigBee wireless signal.

The ZT-2000 ZigBee Wireless products are designed for high level communication protocols using small, low-power digital radios module, which fits the ZigBee 2007 (ZigBee Pro) of ZigBee Alliance. The ZigBee wireless network only allows one ZigBee Host called “ZigBee Coordinator” and several ZigBee slaves. ZT-2570 ZigBee Host Converter is used to initialize and manager the routing of the ZigBee wireless network. A ZigBee wireless network is able to manage 255 ZigBee routers and receive or bypass data from parent or child node.

A Windows compatible GUI configuration utility is provided with our ZigBee Wireless products like the ZT-2570 ZigBee Host Converter. The easy-to-use utility allows users to set different configurations and the required ZigBee variables such as Pan ID.

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4 G (IEEE802.15.4/ZigBee Specifications)
  • Fully Compliant with ZigBee, ZigBee Pro (ZigBee 2007)
  • ZigBee Wireless Transmission Range up to 700 m
  • GUI Configuration Software (Windows Version)
  • RS-232 / RS-485 / Ethernet Interface Supported
  • DIN-Rail Mountable

Application

Models ZT-2570 (ZigBee Coordinator) ZT-2571 (ZigBee Router)
Hardware
CPU 80186, 80 MHz or compatible
Temporary Buffer Size 2300 Bytes
LED Indicators ZigBee Net Green
ZigBee RxD Yellow
Power Red
Communication Interface (COM0)
RS-232 RS-232 (TxD, RxD and GND);
D-Sub 9 Female, Non-isolated D-Sub 9 Male, Non-isolated
RS-485 RS-485 (DATA+, DATA-; internal ASIC self-tuner); Non-isolated
Baud Rate 1200 ~ 115200 bps
Data Bit 7, 8
Parity Check Even, Odd, None
Stop Bit 1, 2
Communication Interface (Ethernet)
Ethernet 10/100 Base-TX (Auto-negotiating, auto_MDI/MDI-X, LED indicators)
Power
Protection Power reverse polarity protection
EMS Protection ESD, Surge, EFT
Required Supply Voltage +10 VDC ~ +30 VDC
Power Consumption 2.5 W (Max.)
Mechanical
Casing Plastic
Flammability UL 94V-0 materials
Dimensions (W x L x H) 33 mm x 78 mm x 107 mm
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -40 ~ +80°C
Relative Humidity 5 ~ 95% RH, Non-condensing
Wireless
RF Channel 16
RF Transmit Power 11 dBm
Antenna (2.4 GHz) 5 dBi Omni-Directional antenna
Transmit Range (LOS) 700 m (Typical)
Max. Slaves Supported 255
EMI Certification CE/FCC, FCC ID
