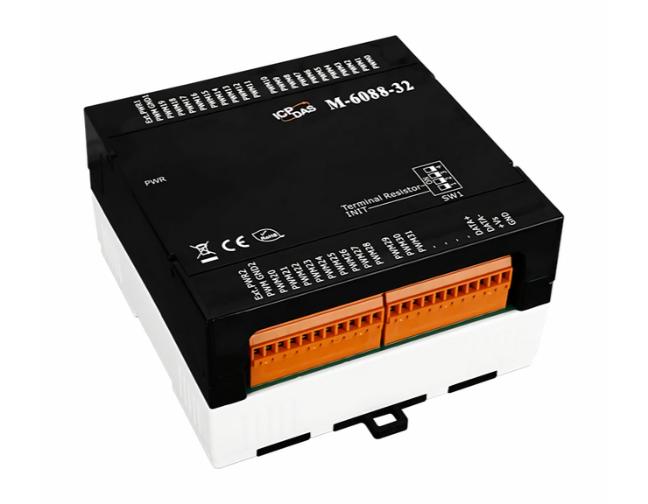

The M-6088-32 provides 32-channel PWM (Pulse Width Modulation) Output, and can be used to develop powerful and cost-effective analog control systems. PWM is a powerful technique for controlling analog circuits that uses the Digital Output to generate a waveform with a variable duty cycle and frequency which can then be used to control an analog circuit in applications such as controlling the position or speed of motors, the brightness of lamps, or the speed of fans, etc. Either burst mode or continuous mode can be used for the PWM output depending on the application. It supports both the Modbus RTU and the DCON protocols, and External PWR allows the load voltage to be increased from +5 to +40 V for the 32-channels PWM (Pulse Width Modulation) output.
M-6088-32.html
CPU Module |
Watchdog Timer |
Yes, Module (1.6 seconds), Communication (Programmable) |
Isolation |
Intra-module Isolation |
2500 VDC |
EMS Protection |
EFT (IEC 61000-4-4) |
±4 kV to Power |
ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
Surge (IEC 61000-4-5) |
±2 kV |
LED Indicators |
Status |
1 x Power and Communication |
PWM |
Channels |
32 |
Type |
Open Collector |
Sink/Source (NPN/PNP) |
Sink |
Load Voltage |
+5 ~ +40 VDC |
Load Current |
+40 VDC@200 mA/Channel |
Frequency |
50 Hz |
Duty Cycle |
0.1 to 99.9 % |
Mode |
Burst, Continuous |
Burst Count |
1 to 65535 |
Power-on Value |
Yes |
Safe Value |
Yes |
COM Ports |
Ports |
1 x RS-485 |
Baud Rate |
1200 to 115200 bps |
Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) |
Protocol |
Modbus RTU, DCON |
Power |
Reverse Polarity Protection |
Yes |
Input Range |
+10 VDC ~ +48 VDC |
Consumption |
1.0 W |
Mechanical |
Dimensions (mm) |
116 x 120 x 64 (W x L x H) |
Environmental |
Operating Temperature |
-25 ~ +75C |
Storage Temperature |
-40C ~ +80C |
Humidity |
10 ~ 95% RH, non-condensing |
|
