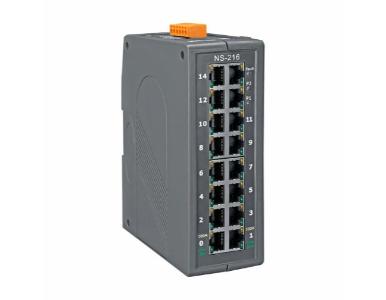

ICP DAS NS-216 - Industrial Unmanaged 16 port 10/100 Mbps Ethernet Switch with Din Rail Mount.
by ICP DAS
|
|
|
|
NS-216_SUMMARY.html
- Supports operating temperatures from -25C ~ +75C
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- Power input 12~48 VDC wide range redundant power inputs
- Automatic MDI/MDI-X crossover for plug-and-play
- DIN-Rail Mounting, Wall Mounting
|
|
|
NS-216_DESCRIPTION.html
The NS-216 has 16 Ethernet ports that support 10/100 Base-TX, with a 10/100M auto negotiation feature and auto MDI/MDI-X function. It can connect 16 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections.
NS-216.html
| EMS Protection |
| EFT (IEC 61000-4-4) |
± 1 kV |
| ESD (IEC 61000-4-2) |
± 4 kV Contact |
| LED Indicators |
| Status |
PWR1, PWR2, Fault, Link/Act, Speed |
| Ethernet |
| Ports |
16 x RJ-45, 10/100Base-TX |
| Standards |
IEEE802.3, 802.3u, 802.3x |
| Processing Type |
Store & forward, wire speed switching |
| MAC Table |
8K |
| Frame Buffer Memory |
2 Mbit |
| Flow Control |
IEEE 802.3x flow control, back pressure flow control |
| Isolation |
1500 Vrms 1 minute |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+12 ~ +48 VDC (Non-isolation, redundant input) |
| Redundant Power Inputs |
Yes |
| Consumption |
0.04 A @ 24 VDC without loading, 0.10A @ 24VDC full loading
0.02 A @ 48 VDC
without loading, 0.06A @ 48VDC full loading |
| Alarm Output |
Yes, Relay 1 A @ 30 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
DIN-rail mounting: 56 x 171 x 127 (W x L x H)
Wall mounting: 56 x 176 x 127 (W
x L x H) |
| Installation |
DIN-rail mounting or wall mounting |
| Ingress Protection Rating |
IP30 |
| Environmental |
| Operating Temperature |
-25 ~ +75C |
| Storage Temperature |
-40 ~ +85C |
| Humidity |
10 ~ 90% RH, Non-condensing |
|
|
|
|
