NSM-210C - Unmanaged Industrial Switch with 8 x 10/100 RJ-45 Ethernet Ports, 2GB SFP Fiber Ports, 12 - 48VDC Power Input
by ICP DAS
|
|
|
|
NSM-210C_SUMMARY.html
- Up to 2 Gigabit uplinks for high bandwidth data aggregation SFP socket for Easy and Flexible Fiber Expansion
- Supports Auto Negotiation and Auto MDI/MDI-X
- Supports Dual +12 ~ 48 VDC power input and 1 relay output
- Supports operating temperatures from -25 ~ +75C
- Power loss alarm
|
|
|
NSM-210C_DESCRIPTION.html
The NSM-210C is 8 Port 10/100 Base copper and 2 Gigabit fiber optic/copper combo port Ethernet Switch, Supports Auto Negotiation ? Auto MDI/MDI-X ?high-speed(100 Mbps) and high-distance transmissions . Apart from this, NSM-210C supports dual power and provides a wide +12 VDC ~ +48 VDC power range to fit all the common power standards found in industrial automation, without external power converters.
NSM-210C.html
|
Standards
|
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
|
|
MAC Addresses
|
8K
|
|
Frame Buffer Memory
|
1 Mbit
|
|
Flow Control
|
IEEE 802.3x flow control, back pressure flow control
|
|
RJ-45 Ports
|
8x 10/100BaseT(X) , 2x 10/100/1000 BaseT(X) (Combo SFP) Auto negotiation speed, full/half duplex
mode, and auto MDI/MDI-X connection
|
|
Fiber Ports
|
2x 1000Base SFP slot
|
|
LED Indicators
|
PWR1, PWR2, FAULT, SFP & Gigabit Act, 8-Port 10/100 Link and Act
|
|
Ethernet Isolation
|
1500 Vrms 1 minute
|
|
Redundant Input Range
|
+12 VDC ~ +48 VDC (Non-isolation)
|
|
Power Consumption
|
0.15A @ 24VDC idle without loading; 0.25A @ 24VDC with full loading
|
|
Alarm Contact
|
One relay output with current carrying capacity of 1A @ 30 VDC
|
|
Protection
|
Power reverse polarity protection
|
|

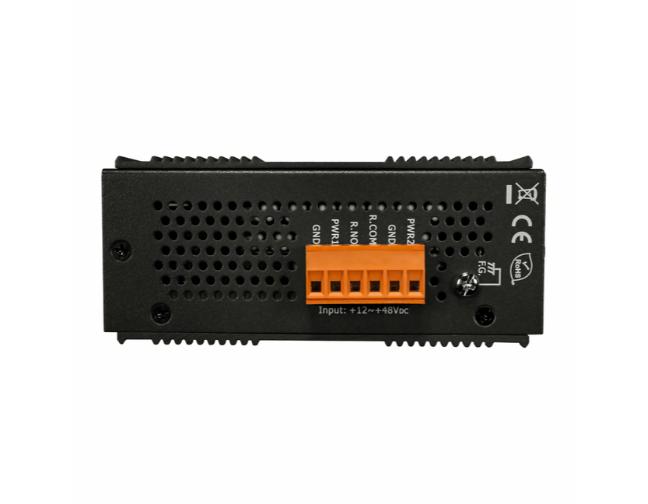

Connector
|
6-Pin Removable Terminal Block (Power & Relay)
|
|
Casing
|
Metal with an IP30 ingress protection rating
|
|
Dimensions (W x L x H)
|
51 mm x 154 mm x 118 mm
|
|
Installation
|
DIN-Rail or Wall Mounting (with optional kit)
|
|
Operating Temperature
|
-25 C ~ + 75 C
|
|
Storage Temperature
|
-40 C ~ + 85 C
|
|
Ambient Relative Humidity
|
10 ~ 90% RH, non-condensing
|
|
|
|
