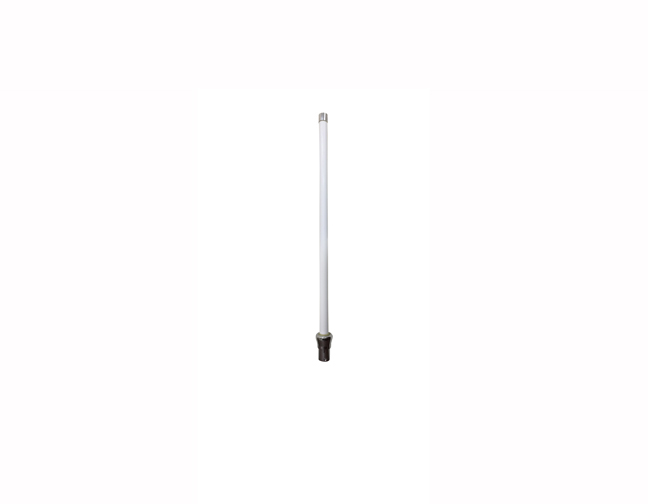

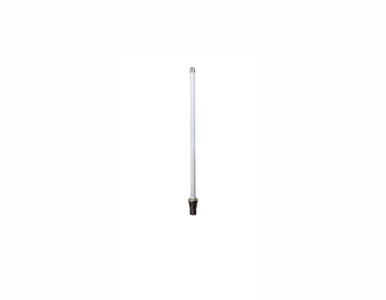

ANT-WDB-ONF-0709 - 07 dBi at 2.4 GHz and 09 dBi at 5 GHz, N-type (female), dual-band omnidirectional antenna
by MOXA

The ANT-WDB-ONF-0709 is an omnidirectional dual-band high-gain antenna with a waterproof N-type female connector. The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Antenna Characteristics

• Frequency

  2.4 to 2.4835 GHz or 5.15 to 5.85 GHz

• Antenna Type

  Omni-directional

• Typical Antenna Gain

  7/9 dBi

• Connector

  N-type (female)

• Impedance

  50 ohms

• HPBW/Horizontal

  360°

• V.S.W.R.

  1:2.5 max.

• Power Handling

  10 W (max.)

• Polarization

  Vertical

Physical Characteristics

• IP Rating

  IP65

• Dimensions

  Diameter: 22 mm (0.87 in)
  Length: 610 mm (24.0 in)

• Weight

  461 g (1.02 lb)

• Radome Color

  White

• Radome Material

  Fiberglass

• Installation

  Pole mount

Environmental Limits

• Operating Temperature

  -40 to 85°C (-40 to 185°F)

• Storage Temperature (package included)

  -40 to 85°C (-40 to 185°F)
