ABC-01 - Automatic Backup Configurator

ABC-01 - Automatic Backup Configurator
by MOXA

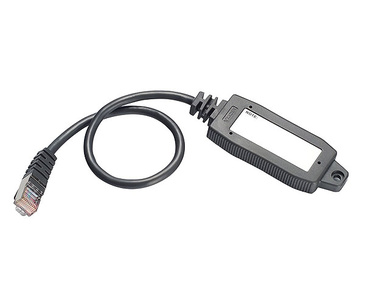

ABC-01 series with RS-232 RJ45 console port connection
Backup and restore switch configuration files
Load the system configuration automatically after system reboot
Portable low-power design (requires no power supply)
CE and FCC approved

Description
Specification
Datasheet

The ABC-01 configuration backup and restoration tool can be used to save and load the configuration of Moxa's managed Ethernet switches and AWK series wireless APs/Bridges/Clients through the RS-232 console port. This simple yet powerful tool makes it much easier to back up a device's system parameters, or even replace an existing device with a new one. With the ABC-01, you can quickly re-install a substitute device (of the same model) or recover the entire system configuration, including IP address, if the device fails.

• Interface
Connectors	RS-232/RJ45 port
LED Indicators	None
• Basic Operation
Storage Capacity	128 KB Flash
Configuration	Use the web console of Moxa’s managed switches
• Power Requirements
Input Voltage	3 to 5 VDC (through the RS-232 port’s RTS signal)
• Physical Characteristics
Housing	PVC molding, IP40 protection
Dimensions	32.5 x 97 x 12 mm (1.28 x 3.82 x 0.47 in)
Weight	50 g
Mounting Method	M4 screws (< 4 mm)
Cable Length	35 cm ±3 cm (including connector)
• Environmental Limits
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Ambient Relative Humidity	5 to 95 % (non-condensing)
• Standards and Certifications
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 2(ABC-01 Series), EN 61000-4-2 (ESD) Level 3(ABC-02 Series), EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3
• Warranty
Warranty Period	5 years
