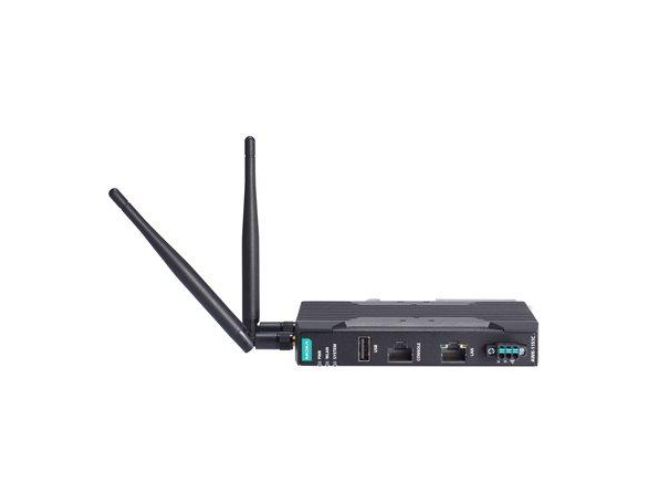

AWK-1151C-UN-T - Industrial 802.11a-b-g-n-ac wireless client, IP30, universal band, -40 to 75°C operating temperature by MOXA
|
|
|
AWK-1151C-UN-T_SUMMARY.html
- IEEE 802.11a-b-g-n-ac Wave 2 wireless client
- Selectable dual-band Wi-Fi with data rates up to 867 Mbps
- Latest WPA3 encryption for enhanced wireless network security
- Universal (UN) models with configurable country or region code for more flexible deployment
- Easy network setup with Network Address Translation (NAT)
- Millisecond-level Client-based Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
- Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
- -40 to 75C wide operating temperature range (-T models)
- Integrated antenna isolation
|
|
|
AWK-1151C-UN-T_DESCRIPTION.html
The AWK-1151C Series industrial wireless client is designed
to meet the growing need for faster data transmission speeds through
IEEE 802.11ac technology for data rates of up to 867 Mbps. The AWK-1151C
is compliant with industrial standards and approvals covering operating
temperature, power input voltage, surge, ESD, and vibration. The compact
form factor with DIN-rail or optional wall mounting easily fits into
industrial machines or control cabinets, offering reliable wireless
connectivity. The AWK-1151C can operate on the 2.4 or 5 GHz band and
is backwards-compatible with existing 802.11a-b-g-n deployments to
future-proof your wireless investments.
AWK-1151C-UN-T.html
WLAN Interface -
WLAN Standards - 2.4 GHz: 802.11b-g-n with 256 QAM support
5 GHz: 802.11a-n-ac Wave 2 with 256 QAM support
-
Frequency Band for UN (20 MHz operating channels) - 2.412 to 2.484 GHz (14 channels)
5.180 to 5.240 GHz (4 channels) 5.745 to 5.825 GHz (5 channels) Available channels change depending on the selected country or region code. 5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service. 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service. -
Wireless Security - WEP encryption (64-bit and 128-bit)
WPA-WPA2-WPA3-Enterprise (IEEE 802.1X-RADIUS, TKIP, AES) WPA-WPA2-WPA3-Personal -
Transmission Rate - 2.4 GHz:
802.11b: 1 to 11 Mbps 802.11g: 6 to 54 Mbps 802.11n: 6.5 to 400 Mbps
5 GHz: 802.11a: 6 to 54 Mbps 802.11n: 6.5 to 300 Mbps 802.11ac: 6.5 to 867 Mbps -
Transmitter Power for 802.11a (Dual Chain) - 25±1.5 dBm @ 6 Mbps
23±1.5 dBm @ 54 Mbps -
Transmitter Power for 802.11n (5 GHz, Dual Chain) - 25±1.5 dBm @ MCS0 20 MHz
22±1.5 dBm @ MCS7 20 MHz 24±1.5 dBm @ MCS0 40 MHz 22±1.5 dBm @ MCS7 40 MHz -
Transmitter Power for 802.11ac (Dual Chain) - 25±1.5 dBm @ MCS0 20 MHz
22±1.5 dBm @ MCS8 20 MHz 24±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS9 40 MHz 23±1.5 dBm @ MCS0 80 MHz 20±1.5 dBm @ MCS9 80 MHz -
Transmitter Power for 802.11b (Dual Chain) - 29±1.5 dBm @ 1 Mbps
29±1.5 dBm @ 11 Mbps -
Transmitter Power for 802.11g (Dual Chain) - 29±1.5 dBm @ 6 Mbps
26±1.5 dBm @ 54 Mbps -
Transmitter Power for 802.11n (2.4 GHz, Dual Chain) - 28±1.5 dBm @ MCS0 20 MHz
25±1.5 dBm @ MCS7 20 MHz 28±1.5 dBm @ MCS0 40 MHz 25±1.5 dBm @ MCS7 40 MHz -
Receiver Sensitivity for 802.11a (measured at 5.680 GHz) - Typ. -89 @ 6 Mbps
Typ. -72 @ 54 Mbps -
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz) - Typ. -89 dBm @ MCS0 20 MHz
Typ. -69 dBm @ MCS7 20 MHz Typ. -85 dBm @ MCS0 40 MHz Typ. -66 dBm @ MCS7 40 MHz -
Receiver Sensitivity for 802.11ac - Typ. -88 dBm @ MCS0 20 MHz
Typ. -65 dBm @ MCS8 20 MHz Typ. -85 dBm @ MCS0 40 MHz Typ. -60 dBm @ MCS9 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -55 dBm @ MCS9 80 MHz -
Receiver Sensitivity for 802.11b (measured at 2.437 GHz) - Typ. -96 dBm @ 1 Mbps
Typ. -88 dBm @ 11 Mbps -
Receiver Sensitivity for 802.11g (measured at 2.437 GHz) - Typ. -90 dBm @ 6 Mbps
Typ. -74 dBm @ 54 Mbps -
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz) - Typ. -90 dBm @ MCS0 20 MHz
Typ. -70 dBm @ MCS7 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -69 dBm @ MCS7 40 MHz -
WLAN Operation Mode - Client, Client-Router, Slave, Sniffer
-
Antenna - External, 2-2 dBi, Omni-directional
-
Antenna Connectors Ethernet Interface -
Standards - IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af for PoE IEEE 802.3at for PoE IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication -
10-100-1000BaseT(X) Ports (RJ45 connector) Ethernet Software Features -
Management - DHCP Client, DNS, HTTP, IPv4, LLDP, SMTP, SNMPv1-v2c-v3, Syslog, TCP-IP, Telnet, UDP, VLAN, MXconfig
-
Routing - Port forwarding, Static Route, NAT
-
Security -
Time Management Firewall -
Filter - ICMP, MAC address, IP protocol, Port-based
Serial Interface USB Interface LED Interface Input-Output Interface Physical Characteristics -
Housing -
IP Rating -
Dimensions - 100 x 130 x 22 mm (3.94 x 5.12 x 0.87 in)
-
Weight -
Installation - DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters -
Input Current - 9 to 30 VDC, 1.57 to 0.47 A
-
Input Voltage -
Power Connector - 1 removable 3-contact terminal block(s)
-
Power Consumption Environmental Limits -
Operating Temperature -
Storage Temperature (package included) -
Ambient Relative Humidity - 5 to 95% (non-condensing)
Standards and Certifications -
EMC - EN 61000-6-2--6-4, EN 55032-35
-
EMI - CISPR 32, FCC Part 15B Class A
-
EMS - IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V-m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V-m IEC 61000-4-8 PFMF: 30 A-m -
Road Vehicles -
Safety - IEC 60950-1, IEC 62368-1, UL 62368-1
-
Vibration -
Radio - EN 300 328, EN 301 489-1-17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, IC
MTBF Warranty
|
|
