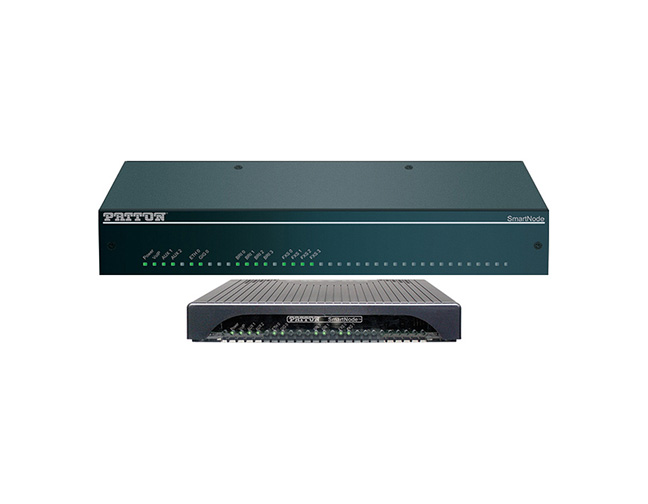

SN4151/2ETH4BIS4JS8VHP/EUI - SmartNode VoIP Gateway, 4 BRI, 4 FXS, 8 VoIP Calls not upgradeable, or 4 SIP-SIP calls (SIP b2b UA)
by PATTON
|
|
|
|
- BRI, FXS & FXO interfaces —2 or 4 ISDN BRI S0/T0 and 2 or 4 FXS-FXO ports. 4–8 G.722/G.711 or 4–8 T.38 calls simultaneously. Optional SIP TLS/SRTP.
- Advanced Local Call Switching—Virtual interfaces and routing tables provide industry leading flexibility in call handling programming. Local call switching, soft fall-back to alternative routes. Simultaneously connects to multiple SIP services/IP PBXs.
- Network Monitoring —Embedded Patton Cloud network monitoring 24x7.***
- Auto-Provisioning —Secure zero-touch provisioning (HTTPS) for ease of use.
- Proprietary OS—Utilizes proprietary Trinity software for enhanced security.
- Full VoIP protocol support—SIPv2, SIPv2 over TLS**, ISDN, QSIG**, T.38, DSS1, G.722 HD voice, RTP security with SRTP, fax and modem bypass, DTMF relay.
- Ease of Use—Patton's Web Wizard is a time saving tool for a fast and reliable installation.
- Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, softswitch vendors, and major IP-PBX manufacturers.
- Optional eSBC upgrade for BRI/FXS/FXO Gateways with 2 Ethernet Ports—Models containing ”/2ETH” can be convert- ed into high performance enterprise session border controllers (eSBC) simply by purchas- ing a software license. This capability pre- pares your voice network for next-generation SIP services and security.
For details about the upgraded eSBC’s capabilities, refer to the model SN5550 eSBC specifications.
- Why SmartNode™?
- Patton Quality
- Made in the USA
- Unrivalled Customer Support
- FREE Support and Upgrades
|
|
|
The Patton Model SN4151-2ETH4BIS4JS8VHP-EUI is the perfect choice for All-IP applications where legacy, non-replaceable telephones have to be integrated into a UCC environment (or for good old fax devices to be migrated to the next-generation network infrastructure).
The combo configuration of 2 BRI and 2 FXS-FXO or 4 BRI and 4 FXS-FXO fits the requirements of small and medium-sized enterprises requiring a solution to enable legacy equipment for VoIP networks.
Patton’s SmartNode 4150 series deliver the legacy phone interfaces, service transparency, and flexible integration required for All-IP networks..
| Call Capacity |
4 up to 16 simultaneous G.722/G.711 or T.38 fax calls |
| Voice Signaling |
SIPv2 and SIPv2 over TLS**
SIP over IPv6
SIP call transfer, redirect
Overlap or en-bloc dialing
DTMF in-band, out-of-band |
| Call Routing & Services |
Regular expression number matching
Regular expression number manipulation
Least Cost Routing
Number blocking
Short-Dialing
Digit collection
Distribution-Groups and Hunt-Groups |
| FXS Connectivity |
2-wire Loopstart on RJ-11/12
2 or 4 FXS ports, RJ-11/12
Long Reach FXS—10 km @ 3REN load
EuroPOTS (ETSI EG201188)
Programmable AC impedance, feeding, ring and on-hook voltage
Caller-ID FSK and ITU V.23/Bell 202 generation
|
| FXO Connectivity |
2-wire Loopstart on RJ-11/12
2 or 4 FXO ports
Programmable impedance
Ring detection, tone detection
Caller ID detection (FXS, DTMF)
Disconnect supervision |
| ISDN |
2 or 4 BRI S0/T0 ports, RJ-45
NT/TE configurable per port
Built-in line power on each port (total 4W)
DSS1, Q.921, Q.931. NTT-64
HP High Precision Clock Stratum 3 CO
Point-point and point-multipoint
Lifeline Bypass Relay
Optional QSIG support** |
| Voice Processing |
G.722
G.711m/A-law
G.723.1 (6.4 kbps)
G.729, 729a, 729ab (8 kbps)
G.726 (16, 24, 32, 40 Kbps)
AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2kbps)
iLBC at 13.33 kbps (SIP-SIP only)
G.168-2004 echo cancellation (128 ms)
4–16 simultaneous low-bandwidth voice or T.38 fax calls
4–16 HD calls with SRTP
Up to 200 SIP to SIP calls ***
Transparent ISDN data (RFC 4040)
Silence suppression and comfort noise
Adaptive and configurable dejitter buffer
Configurable RTP packet length |
| Quality of Service |
Patton Cloud network monitoring***
Voice priority, DownStreamQoS™
Traffic Management, shaping policing
IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling |
| Connectivity |
One or two 10/100/1000Base-T Ethernet ports
Auto-MDIX
USB 2.0 host port (/2ETH port version only)
DHCP Client
PPPoE Client (multi-session)
IP Multi-Netting, VLAN, Secondary IP
Dual Stack IPv4 & IPv6
ICMP
Dynamic and static NAT and NAPT
ACL, Stateful Firewall
DNS, DynDNS
DHCP Server
SNTP Client |
| Management |
Patton Cloud Orchestrated
Customizable WebWizard, Web-based GUI, CLI Telnet and HTTP access
TR-069, TFTP, HTTP, HTTPS configuration up- and download
TR-069, TFTP, HTTP, HTTPS firmware upgrade, Dual Image
SNMPv3 agent - MIB II and private MIB
Separate config domain (LAN side config and WAN side config)
Built-in diagnostic tools
Secure Auto-Provisioning with built in root CA
|
| Power Consumption |
< 10W |
| Packaging |
Desktop/Wall-mount plastic chassis.
Metal: Rack mount option |
| Dimensions |
Plastic chassis 2BIS/2FXS: 8.2W x 1.3H x 6.5D in. (20.8W x 3.4H x 16.5D cm)
Metal enclosure 4BIS/4FXS, 2BRI/2FXS/2FXO, 4BRI/4FXS/4FXO:
11W x 1.5H x 6.1D in (28 W x 3.9 H x 15.7 D cm) Rack mount options available: See Accessories under Ordering |
| Weight |
<450g (15.9 oz) / <600g (metal) |
| Environment |
Operating temperature: 32–104°F (0–40°C)
Operating humidity: up to 90%, non-condensing |
| Compliance |
•FCC Part 15 Class A (US EMC)
•CE per RTTE 99/5/EC (EMC and LVD) |
| Safety |
•EN60950
•TBR-3 (ISDN BRI/S0) |
|
|
