SN4131/2ETH2BIS4VHP/EUI - SmartNode VoIP GW, 2 BRI TE/NT, 4 VoIP Calls, or 4 SIP Sessions (SIP b2b UA) upgradeable (max. 200), O
by PATTON
|
|
|
|
- 2/4/8 Ports Quality ISDN VoIP—2, 4 or 8 ISDN BRI S0 ports. Up to 10 G.722 or up to 16 T.38 or G.711 calls simultaneously. Using SRTP, up to 10 simultaneous calls.
- Full Telephony Features—SessionRouter™ allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, 3-way conferencing (Roadmap) and much more.
- Management & Provisioning— Web-based management, WEB Wizard, SNMPv3, command line interface, auto-provisioning separate config domain support, secure provisioning for configuration and software upgrades.
- Network Connectivity—One 10/100/1000 Ethernet port with auto MDI-X.Ethernet. Supports VLAN, TOS and Diffserv tagging. Basic IPv6 support.
- Full VoIP protocol support—SIPv2, SIP v2 over TLS, ISDN, DSS1, QSIG**, T.38, G.722 HD voice, RTP Security with SRTP, fax and modem bypass, DTMF relay.
- Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, softswitch vendors, and Asterisk™ IP-PBX.
- High Precision Clock (HP)*** Option—DECT PBX interoperability and improved fax performance with Stratum 3 CO quality clock.
- Supported by SmartNode™ Redirection Service—A free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers (Learn More).
- Why SmartNode™?
- Patton Quality
- Made in the USA
- Unrivalled Customer Support
- FREE Support and Upgrades
|
|
|

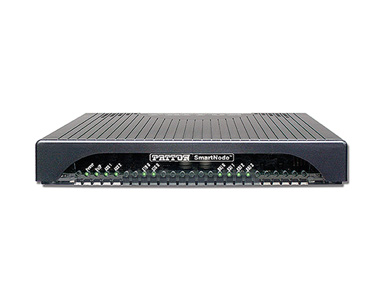

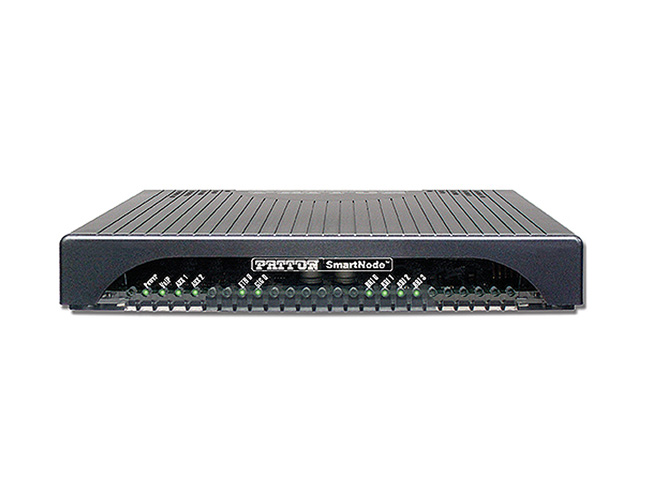

The Patton Model SN4131-2ETH2BIS4VHP-EUI are the next-generation ISDN BRI models of the proven market-leading SmartNode VoIP product family. The available 2, 4 or 8-port configurations fit the requirements of small and medium-sized enterprises looking for a cost-effective way to bridge PBX systems on multiple sites or connect them to a public Internet telephony service.
By connecting a PSTN line and an ISDN PBX to the SmartNode, it is secured against SIP trunk outages (fallback routing). If available, the PSTN line can also synchronize the gateway. For applications without a PSTN line available, the optional ISDN HP (high precision clock) provides error-free ISDN data and fax transmissions.
Like every Trinity SmartNode, the SN4130 comes with a built-in WEB Wizard for fast and easy configuration. You can build your own Web interface usingthe WEB Wizard functionalities.
| Voice Signaling |
SIPv2
SIPv2 over IPv6
SIP call transfer, redirect
Overlap or en-bloc dialing
DTMF in-band, out-of-band
Configurable tones |
| Call Routing & Services |
Regular expression number matching
Regular expression number manipulation
Least Cost Routing
Number blocking
Short-Dialing
Digit collection
Distribution- and Hunt-Groups |
| ISDN |
2/4/8 BRI S0 ports***, RJ-45
NT/TE configurable per port
Built-in line power on each port (total 4W)
DSS1, Q.921, Q.931. NTT-64
HP*** High Precision Clock Stratum 3 CO
Point-point and point-multipoint
Optional QSIG support** |
| Voice Processing |
G.722
G.711m/A-law
G.723.1 (6.4 kbps)
G.729, 729a, 729ab (8 kbps)
G.726 (16, 24, 32, 40 kbps)
AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2kbps)
iLBC at 13.33 kbps (SIP-SIP only)
G.168-2004 echo cancellation (128ms)
4/8/16 simultaneous low-bandwidth voice or T.38 fax calls
2/5/10 HD calls with SRTP
Up to 200 SIP to SIP calls ****
Up to 4 SIP transcoded calls***
Transparent ISDN data
Silence suppression and comfort noise
Adaptive and configurable dejitter buffer
Configurable packet length |
| Packet Tagging and VLAN |
IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling |
| Connectivity |
One 10/100/1000Base-T Ethernet port
USB 2.0 host port
Auto-MDIX
DHCP Client
PPPoE Client (multi-session)
VLAN support, Secondary IP
IPv4
Basic IPv6
ICMP
ACL
DNS, DynDNS
DHCP Server
SNTP Client |
| Management |
Patton Cloud Orchestrated
Customizable WebWizard, Web-based GUI, CLI Telnet and HTTP access
TR-069, TFTP, HTTP, HTTPS configuration up- and download
TR-069, TFTP, HTTP, HTTPS firmware upgrade, Dual Image
SNMPv3 agent - MIB II and private MIB
Separate config domain (LAN side config and WAN side config)
Built-in diagnostic tools
Secure Auto-Provisioning with built in root CA |
| Power Consumption |
< 10W |
| Packaging |
Desktop/Wall-mount plastic chassis |
Dimensions &Weight
|
Plastic enclosure (2-4BIS models):
Dimensions: 8.2w x 1.3h x 6.5d inch (20.8w x 3.4h x 16.5d cm)
Weight: 2.12lbs/ 961g
Metal enclosure (8BIS model only):
Dimensions: 7.5w x 3.75h x 10.25d inch (37.46w x 9.525h x 26.035d cm)
Weight: 2.74lbs/ 1.242kg
|
| Environment |
Operating temperature: 32–104°F (0–40°C)
Operating humidity: up to 90%, non-condensing |
| Compliance |
FCC Part 15 Class A (US EMC)
CE per RTTE 99/5/EC (EMC and LVD) |
| Safety |
EN60950
TBR-3 (ISDN BRI/So) |
|
|
