Advantech - BESS Communication Gateway
by Advantech
|
|
|
|
High-Performance All-in-One Gateway for Battery Energy Storage Systems
- Quad-core Cortex-A55 processor, 1.8GHz
- Connectivity: 4 GbE, 8 RS-232/485, 2 CAN, 1 mPCle and 1 M.2
- I/O: 20 DI, 6 DO, 8 Relay, 2 AI
- Battery-powered RTC, Watchdog, and optional TPM support
- Wide operating temperature range: -40~70°C
- Optional 5 sec power backup with Supercapacitor
- Supports IEC 61850, IEC 104, DNP3, Modbus, MQTT, and OPC UA
- Preloaded with Yocto Linux and EdgeLink or Ubuntu Linux
|
|
|

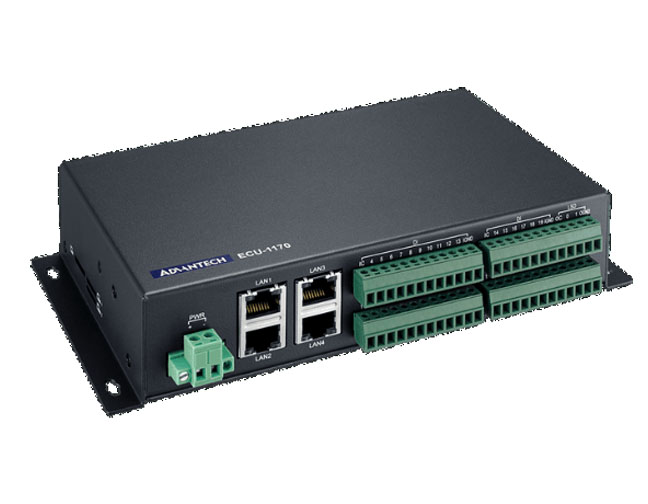

Advantech ECU-1170-551A
The ECU-1170 is a purpose-built gateway designed specifically for Battery Energy Storage Systems (BESS) applications. Featuring integrated multi-I/O interfaces and paired with EdgeLink software, the ECU-1170 supports a wide range of communication protocols, enabling seamless connectivity between various BESS sub-systems. With its high computational performance, the ECU-1170 not only functions as a robust gateway but also serves as a local EMS (Energy Management System) or a BAU (Battery Auxiliary Unit), offering exceptional versatility and efficiency for energy storage solutions.
|
|
|
|
