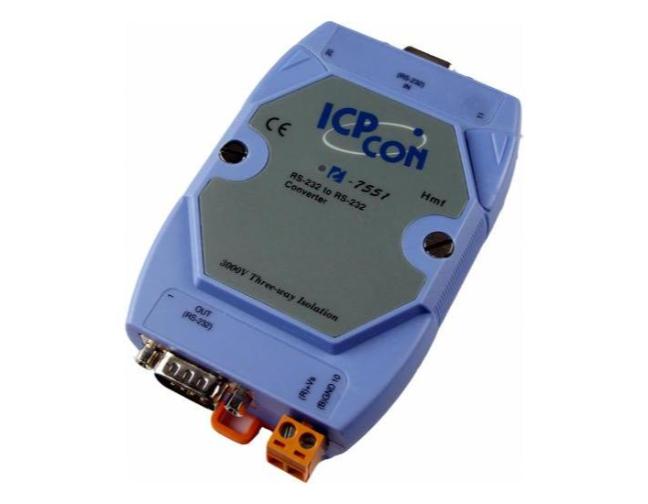

I-7551 - Isolated RS-232 to RS-232 Converter. Supports operating temperatures between -25 to 75C.
by ICP DAS
|
|
|
|
I-7551_SUMMARY.html
- 3000 VDC 3-way Isolation Protection
- ESD Protection
- Power Input, +10 ~ +30 VDC
- Baud Rate, 300 ~ 115200 bps
- Operating Temperatures, -25 C ~ +75 C
- DIN-Rail
|
|
|
I-7551_DESCRIPTION.html
The I-7551 Photo coupler provides a complete full-duplex (including control signal) electrical isolation channel between two RS-232 devices. This isolation is an important consideration if a system uses different power sources, has noisy signals, or must operate at different ground potentials.
I-7551.html
| Interface |
| Input |
TxD, RxD, CTS, RTS, GND or TxD,
RxD, DSR, DTR, GND
Jumpers JP1 and JP2 are used to select the RS-232 input source type |
| Output |
TxD, RxD, CTS, RTS, GND or TxD, RxD, DSR,
DTR, GND |
| Transfer Distance |
Max. 15 M at 115200 bps |
| Speed |
300 ~ 115200 bps |
| ESD Protection |
Yes |
| 3000 VDCThree Way Isolated
Protection |
Yes |
| Connection |
RS-232 Input |
9-Pin Female D-Sub |
| RS-232 Output |
9-Pin Male D-Sub |
| LED Indicators |
| Power/Communication |
Yes |
| Power |
| Input Voltage Range |
+10 VDC~ +30 VDC(Non-isolated) |
| Power Consumption |
1.2 W |
| Mechanical |
| Casing |
Plastic |
| Flammability |
Fire Retardant Materials (UL94-V0 Level)
|
| Dimensions (W x H x D) |
72 mm x 118 mm x 35 mm |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 C ~ +75 C |
| Storage Temperature |
-30 C ~ +75 C |
| Humidity |
10 ~ 90% RH, non-condensing |
|
