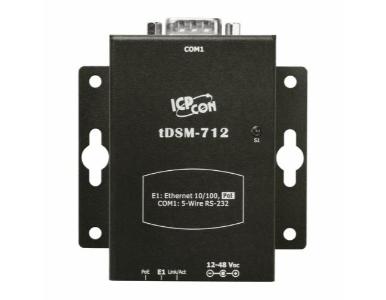

tDSM-712 - Tiny Serial to Ethernet Device Server with PoE and 1 RS-232 Port (Metal case, RoHS) by ICP DAS
|
|
|
tDSM-712_SUMMARY.html
- Incorporates any RS-232/422/485 serial device in Ethernet
- Data transmission via Virtual COM or raw TCP connection
- VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/8/10
- Max. connections : 1 socket per serial port is suggested
- Supports pair-connection (serial-bridge, serial-tunnel) applications
- Supports TCP client-mode and TCP server-mode operations
- Supports UDP responder for device discovery (UDP Search)
- Static IP or DHCP network configuration
- Easy firmware update via the Ethernet (BOOTP, TFTP)
- Tiny Web server for configuration (HTTP)
- Contains a 32-bit MCU that efficiently handles network traffic
- 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
- Allows automatic RS-485 direction control
- 3000 VDC Isolation and +/-4 kV ESD protection for i versions
- Male DB-9 or terminal block connector for easy wiring
- Tiny form-factor and low power consumption
- RoHS compliant & no Halogen
- Cost-effective device servers
|
|
|
tDSM-712_DESCRIPTION.html
The tDSM-712 of Serial-to-Ethernet device servers that are designed to add Ethernet and Internet connectivity to any RS-232 and RS-422/485 device, and to eliminate the cable length limitation of legacy serial communication. By using the VxComm Driver/Utility, the built-in COM port of the tDS-700 series can be virtualized to a standard PC COM port in Windows. Therefore, users can transparently access or monitor serial devices over the Internet/Ethernet without software modification.
tDSM-712.html
tDS-700 Series (Tiny Device Server with PoE and DC jack) : Includes one CA-002 cable. | Model (Non-Isolated) | Model (Isolated) | Case | RS-232 | RS-422 | RS-485 | COM1 | COM2 | COM3 | tDS-712 CR | tDS-712i CR | Plastic | 1 | - | - | 5-wire RS-232 | - | - | tDSM-712 CR | | Metal | | | tDS-722 CR | tDS-722i CR | Plastic | 2 | - | - | 5-wire RS-232 | 5-wire RS-232 | - | tDS-732 CR | tDS-732i CR | Plastic | 3 | - | - | 3-wire RS-232 | 3-wire RS-232 | 3-wire RS-232 | tDS-715 CR | tDS-715i CR | Plastic | - | 1 | 2-wire RS-485 4-wire RS-422 | - | - | tDS-725 CR | tDS-725i CR | Plastic | - | - | 2 | 2-wire RS-485 | 2-wire RS-485 | - | tDS-735 CR | tDS-735i CR | Plastic | - | - | 3 | 2-wire RS-485 | 2-wire RS-485 | 2-wire RS-485 | tDS-718 | tDS-718i CR | Plastic | 1 | 3-wire RS-232 | - | - | 2-wire RS-485 4-wire RS-422 | - | tDS-718i-D CR | Plastic | 1 | 5-wire RS-232 | - | - | 2-wire RS-485 4-wire RS-422 | tDS-724 CR | tDS-724i CR | Plastic | 1 | - | 1 | 2-wire RS-485 | 5-wire RS-232 | - | tDS-734 CR | tDS-734i CR | Plastic | 2 | - | 1 | 2-wire RS-485 | 3-wire RS-232 | 3-wire RS-232 |
|
|
|
