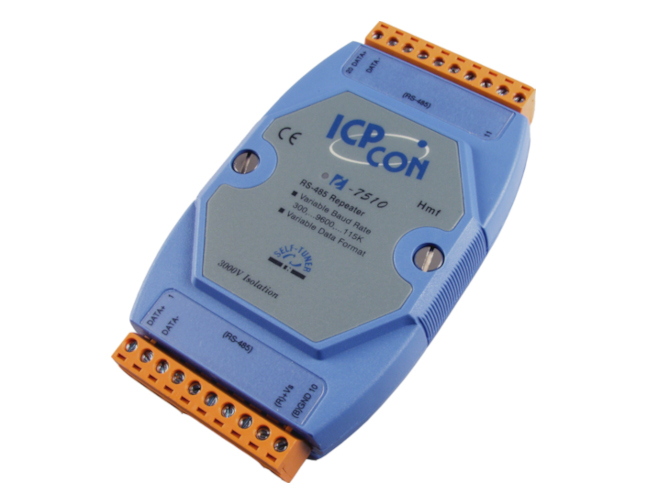

I-7510 - Isolated RS-485 High Speed Repeater. Extends RS-485 signal beyond 4000 feet.
by ICP DAS
|
|
|
|
I-7510_SUMMARY.html
- Works as a RS-485 Repeater, RS-422 Repeater, and RS-422 to RS-485 Signal Converter
- Extends RS-485 signal beyond 4000 feet
- Transmission Speed of up to 115200 bps
- Auto Switching Baud Rate, 300 ~ 115200 bps
- ESD Protection for RS-485 Data Line
- 2-way 3000 VDC Isolation Protection
- Supports Power Input of +10 ~ +30 VDC
- Supports Operating Temperatures from -25 C ~ +75 C (-13F ~ 167F)
- DIN-Rail mountable
|
|
|
I-7510_DESCRIPTION.html
The I-7510 provides 2-way optical isolation between one piece of RS-422/RS-485 equipment and the rest of the
system. It can also be used as a repeater to extend the transmission signal of an existing RS-485 network to beyond 4000
feet. Additionally, an RS-485 system can be expanded beyond the 256 node limitation imposed by the standard. It can also
be used to convert a 4-wire RS-422 signal to a 2-wire RS-485 signal, and vice versa.
I-7510.html
|
Serial Interface
|
RS-422
|
-
|
|
RS-485
|
Data+, Data-
|
|
2-wire cabling/4-wire cabling
|
Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are
used, the transmission distance may change
|
|
Transfer Distance
|
Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps
|
|
Max. Devices Supported
|
256
|
|
Self-Tuner Asic Inside
|
Yes
|
|
Speed
|
300 ~ 115200 bps
|
|
ESD Protection
|
Yes
|
|
3000 VDC Isolated Voltage
|
2-way Isolated
|
|
Connection
|
Removable 10-Pin Terminal Block x 2
|
|
Input Voltage Range
|
+10 VDC ~ +30 VDC (Non-isolated)
|
|
Power Consumption
|
2.16 W
|
|
Casing
|
Plastic
|
|
Flammability
|
Fire Retardant Materials (UL94-V0 Level)
|
|
Dimensions (W x H x D)
|
72 mm x 122 mm x 35 mm
|
|
Installation
|
DIN-Rail
|
|
Operating Temperature
|
-25C ~ +75C
|
|
Storage Temperature
|
-30C ~ +75C
|
|
Humidity
|
10 ~ 90% RH, non-condensing
|
|
