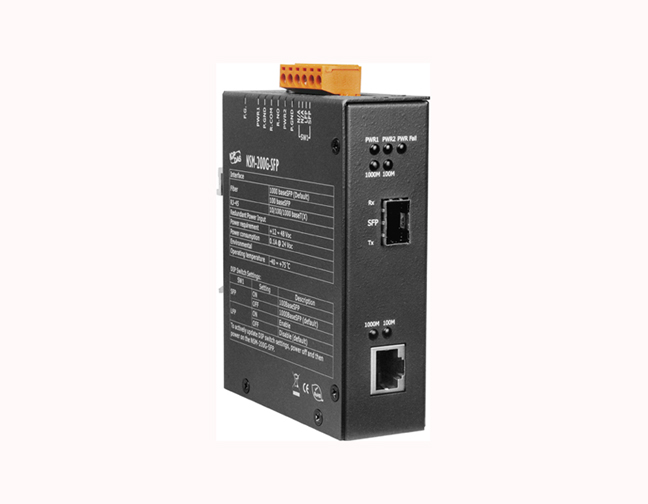

NSM-200G-SFP - Industrial 1000 Base-T to 1000 Base-X Converter, SFP slot (RoHS)
by ICP DAS
|
|
|
|
- Provides 1 x 1000 Mbps fiber port with SC type connector for 1000 Base-SX/LX device
- Supports wide operating temperatures from -30 °C ~ +75 °C
- Transparent to jumbo packets up to 10 KB
- Provides Link Fault Pass-through (LFP)
- Supports redundant +12 VDC ~ +48 VDC power input
|
|
|
ICP DAS's line of feature rich 10/100/1000 SFP Media Converters, NSM-200G-SFP, transparently connects copper to SFP for multi-mode or single-mode fiber. Our 10/100/1000 Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices. The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by ICP DAS or other manufacturers of MSA (Multi-source Agreement) compliant SFPs. Gigabit Media Converters are also available with support for LFP (Link Fault Pass-through) feature.
Specification |
RJ-45 Ports |
10/100/1000 Base-T(X) auto negotiation speed and auto MDI/MDI-X connection |
| Fiber Port |
1000BaseSFP slot/100BaseSFP slot |
| LED Indicators |
PWR1, PWR2, P-Fail, Link/Act, 100M, 1000M |
| Optical Fiber |
- |
| Distance |
- |
| Wavelength |
- |
| Min. TX Output |
- |
| Max. RX Sensitivity |
- |
| Min. RX Overload |
- |
| Input Voltage Range |
+12 VDC ~ +48 VDC (Non-isolated) |
| Power Consumption |
0.1 A @ 24 VDCanical |
Dimensions
(W x L x H) |
34 mm x 111 mm x 121 mm |
| Installation |
DIN-Rail Mounting (optional wall mounting kits) |
| Operating Temperature |
-30°C ~ +75°C |
| Storage Temperature |
-40°C ~ +85°C |
| Ambient Relative Humidity |
10% ~ 90% RH, non-condensing |
|
|
