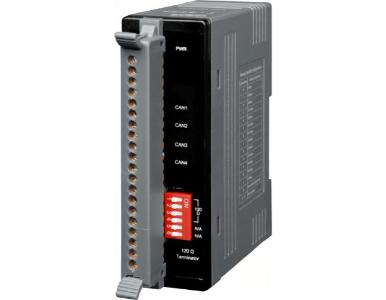

I-2534 - Industrial 4-port CAN bus Switch.
by ICP DAS
|
|
|
|
I-2534_SUMMARY.html
- 4 CAN communication ports
- TJA1042 CAN transceiver
- Compatible with CAN specification 2.0A and 2.0B
- Fully compatible with the ISO 11898-2 standard
- Baud rate : 5 k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined
- CAN filter is configurable
- CAN bus route path is configurable
- 100 data frames buffer for each CAN channel
- Max. data flow up to 2500 fps (frames per second) for all CAN channels
- Selectable baud rate by rotary switch
- Selectable 120O terminator resistor by DIP switch
- LED for CAN status
- Utility tool for CAN filter, route path and user-defined baud rate configuration
- 2500 Vrms isolation on the CAN side
- 3 kV galvanic isolation between the power supply and CAN channel
- 4 kV ESD protection for each channel
- Hi-Pot, Surge, EMI and EFT testing are all pass
|
|
|
I-2534_DESCRIPTION.html
The I-2534 is one kind of CAN bus switch. There are four independent CAN channels which offer a flexible design of the start or tree network topology. This new topology could resolve the complex CAN bus application, like industrial machinery, building automation, vehicle automation, and etc. Furthermore the I-2534 integrates and exchanges data between different CAN network which has different baud rate. It helps users to extend the CAN network system. The I-2534 could increase the maximum CAN node count in a CAN network by splitting the CAN network into several subnets. In additional, the user-defined CAN baud rate and CAN filter configuration are also supported.
|
