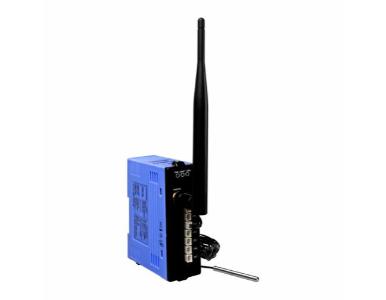

ZT-2005-C8 - ZigBee Wireless 8-channel thermistor input module. Supports DCON and Modbus RTU Protocols. Supports operating tempe
by ICP DAS
|
|
|
|
ZT-2005-C8_SUMMARY.html
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with IEEE802.15.4/ZigBee Specifications (ZigBee Pro/ZigBee 2007)
- Wireless Transmission Range up to 700 meters (Line of Sight)
- Supports ZigBee Repeater Function
- Supports DCON and Modbus RTU protocols
- 8-Channel Thermistor Input
- Resolution: 12 bits
- Accuracy: ±1C
- DIN-Rail Mountable
- Operating Temperatures, -25 C ~ +75 C
|
|
|
ZT-2005-C8_DESCRIPTION.html
The ZT-2005-C8 is an 8-channel thermistor input, Zigbee wireless module. Based on the IEEE802.15.4 standard, it allows users to measure temperature via a thermistor in a personal area ZigBee network. The ZT-2005-C8 is user-friendly, allowing easy configuration on the module's address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches. ZT-2005-C8 has 4 kV ESD protection and 1000 VDC intra-module isolation.
ZT-2005-C8.html
I/O Specifications
|
Input Channels
|
8
|
|
Input Type
|
Thermistor (Only CA-021)
|
|
Resolution
|
12 bits
|
|
Sampling Rate
|
10 Hz total
|
|
Accuracy
|
±1°C
|
|
Pipe
|
φ6x60mm, stainless stell (SUS304)
|
|
Wire
|
4.94m, UL2651 #24AWG*2C (TS)
|
|
Connector
|
2pin, pitch 2.0mm
|
|
Resistance
|
R25=10K(Ω)±1%
|
|
B Constant
|
R25/85=3435(K)±1%
|
|
Dissipation Factor
|
≧3(mW/°C)
|
|
Thermal Time Constant
|
≦15 (sec)
|
|
Measuring Temperature Range
|
-40 ~ 105°C
|
System Specifications
|
Wireless Standards
|
ZigBee 2007 Pro
|
|
Transmission Power
|
11 dBm (FCC Certificated) ( Max 19 dBm)
|
|
Antenna
|
2.4 GHz - 5 dBi Omni directional
|
|
Transmission Range (LoS)
|
700 m (Typical)
|
|
Certification
|
CE/FCC
|
|
Max. Slaves in a ZigBee Network
|
255
|
|
Protocols
|
Supports DCON and Modbus RTU Protocols
|
|
Wireless Encryption
|
AES-128
|
|
ZigBee Communication
|
1 LED, Green
|
|
ZigBee RxD
|
1 LED, Yellow
|
|
Power
|
1 LED, RED
|
|
Intra-module Isolated,
Field-to-Logic
|
1000 VDC
|
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for Power Line, Communication Line and each Channel, ±8 kV Air for Random Point
|
|
EFT (IEC 61000-4-4)
|
±4 kV for Power Line
|
|
Surge (IEC 61000-4-5)
|
±3 kV for Power Line
|
|
Input Voltage Range
|
+10 VDC ~ +30 VDC
|
|
Power Consumption
|
1 W(Max.)
|
|
Flammability
|
Fire Retardant Materials (UL 94V-0 Level)
|
|
Dimensions (L x W x H)
|
87 mm x 33 mm x 110 mm
|
|
Installation
|
DIN-Rail
|
|
Operating Temperature
|
-25°C ~ +75°C
|
|
Storage Temperature
|
-30°C ~ +80°C
|
|
Relative Humidity
|
10 ~ 90% RH (non-condensing)
|
|
