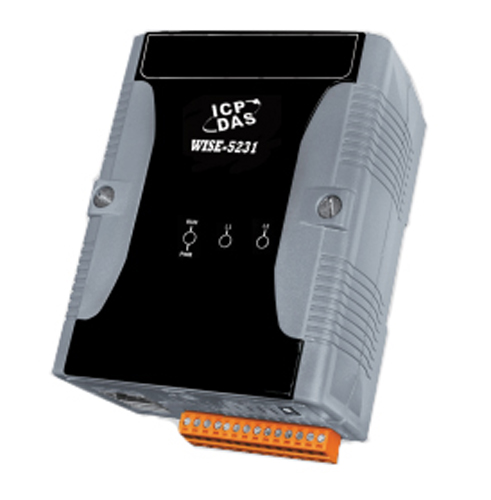

WISE-5231 - Configurable Expandable Multifunction loT Controller by ICP DAS
|
|
|
Intelligent Expandable Multifunction IoT Controller. Configurable over web page interface and supports Modbus RTU, Modbus TCP, SNMP, MQTT, FTP, SSL/TLS, CGI and DDNS.
|
|
|
The WISE-5231 is simple to use and integrates easily with I/O modules and sensors on the field side, supports various IoT protocols and integrates easily with SCADA/MIS/MES/IT/Network Management systems for real-time transfer of I/O information. It offers reliable real-time I/O logic control and data logger functions. It has a user-friendly web site-interface that allows for IF-THEN-ELSE control logic programming on controllers. This eliminates the need for custom hard-code programming.
A plethora of support in I/O functions are provided by the WISE-5231 making it very flexibile in terms of connectivity: DCON I/O modules, Rodbus RTU slave modules, Modbus TCP slave modules, and XV-boards. With CGI command functions built-in, you can configure devices such as IP cameras to take certain actions (such as begin or stop recording operations) using IF-THEN-ELSE logic rules. The WISE-5231 becomes the perfect concentrator of sensor and I/O modules for the IoT age in this regard.
- Supports Modbus TCP and Modbus RTU Protocols
- Supports SNMP (Simple Network Management Protocol)
- Supports MQTT (MQ Telemetry Transport) for message publish/subscribe mechanism
- Supports FTP Server/Client for maintenance of data logger files
- Supports SSL/TLS authentication Email sending for alarm notifications
- Supports full CGI command operations - CGI command sending and CGI command receiving
- Supports DDNS (Dynamic DNS)
- Runs on browsers, no extra software tools needed
- No programming needed. Web pages provide control logic editing
- IF-THEN-ELSE logic rule execution
- Supports XV-boards
- Support up to 32 DCON an Modbus RTU Slave devices
- Supports up to 16 Modbus TCP Slave devices
- Data Logger and data files send back functions
- Active I/O sending function real-time data transfer
System |
CPU |
Cortex-A8 CPU (1 GHz) |
Software |
Built-in WISE Firmware |
microSD Expansion |
Built-in one 4 GB microSD card (support up to 32 GB microSDHC card) |
RTC (Real Time Clock) |
Yes |
VGA |
Yes |
Communication |
Ethernet |
RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X) |
COM 1 |
RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max |
COM 2 |
RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. |
COM 3 |
RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max |
COM 4 |
RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
LED Indicators |
Power LED |
Yes (Red) |
System LED |
Yes (Red, Green) |
I/O Module Support |
Local I/O Module |
Yes, one XV-board |
Remote I/O Module |
DCON modules (up to 32) or Modbus RTU Slave modules (up to 32), Modbus TCP Slave modules (up to 16) |
Power Requirements |
Input Range |
12 to 48 VDC |
Power Consumption |
4.8 W |
Mechanical |
Dimensions / Installation |
91 mm x 132 mm x 52 mm (W x L x H) / DIN-Rail Installation |
Environmental |
Temperature |
Operating Temperature: -25 °C to +75 °C; Storage Temperature: -30 °C to +80 °C |
Humidity |
10 to 90% RH, Non-condensing |
|
|
