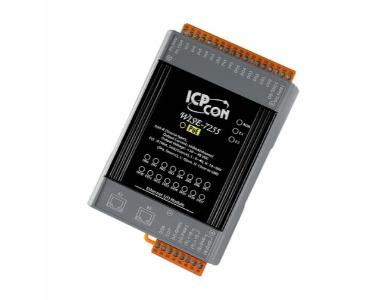

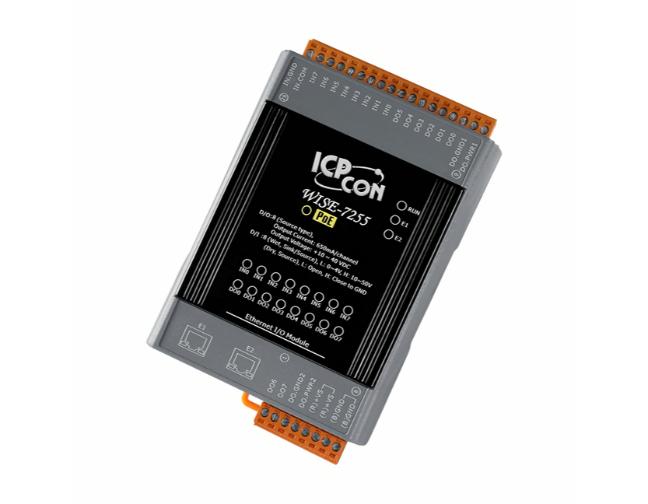

WISE-7255 - 8-channel Isolated Source Type Open Collector Output and 8-channel Digital Input PoE Module (RoHS) by ICP DAS
|
|
|
WISE-7255_SUMMARY.html
- Built-in Web Server for IF-THEN-ELSE rule setting
- Built-in IF-THEN-ELSE rule enigne for logic operation
- No more programming. Just click and get done!
- Support IO, Counter, Timer, Email operations
- Modbus TCP Protocol for SCADA Software Seamless Integration
- IEEE 802.3af-compliant Power over Ethernet (PoE)
- 10/100 Base-TX Ethernet
- 2-way Isolation/ESD Protection
- DO Type: 8 Isolated Open Collectors (Source Type)
- DI Type: 8 Dry/Wet Contact (Sink/Source)
|
|
|
WISE-7255_DESCRIPTION.html
WISE-7255 developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development.
WISE-7255 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7255 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.
This module WISE-7255 supports Modbus TCP protocol to make seamless integration with SCADA software available. It features 8-channel isolated open collector outputs and 8-channel Dry/Wet contact digital inputs. Each output channel supports 650 mA currnet driving 10 ~ 40 VDC.
WISE-7255.html
Channels
|
8
|
Contact
|
Dry + Wet
|
Sink/Source (NPN/PNP)
|
Dry: Source
Wet: Sink/Source
|
Wet Contact
|
On Voltage Level: +10 VDC ~ +50 VDC
Off Voltage Level: +4 VDC Max.
|
Dry Contact
|
On Voltage Level: Close to GND
Off Voltage Level: Open
|
Input Impedance
|
10 k?
|
Counters
|
Max. Count: 65535 (16 bits)
Max. Input Frequency: 50 Hz
Min. Pulse Width: 10 ms
|
Overvoltage Protection
|
+70 VDC
|
Effective Distance
|
500 M Max.
|
Output Channels
|
8
|
Output Type
|
Open Collector (Source)
|
Max. Load Current
|
650 mA/channel at 25 C
|
Load Voltage
|
+10 VDC ~ +40 VDC
|
Overvoltage Protection
|
47 VDC
|
Overload Protection
|
-
|
Short Circuit Protection
|
Yes
|
CPU
|
16-bit CPU
|
SRAM
|
512 KB
|
Flash Memory
|
512 KB
|
EEPROM
|
16 KB
|
Watchdog
|
Yes
|
Ethernet Port
|
2 x RJ-45, 10/100 Base-TX, Swtich Ports
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
|
EFT (IEC 61000-4-4)
|
±2 kV for Power Line
|
Surge (IEC 61000-4-5)
|
±2 kV for Power Line
|
for System Running
|
Yes
|
for Ethernet Link/Act
|
Yes
|
for DI/DO Status
|
Yes
|
for PoE Power
|
Yes
|
Reserve Polarity Protection
|
Yes
|
Powered from Terminal Block
|
Yes, 12 ~ 48 VDC
|
Powered from PoE
|
Yes, IEEE 802.3af, Class1
|
Consumption
|
4.0 W
|
Dimensions (L x W x H)
|
120 mm x 76 mm x 38 mm
|
Installation
|
DIN-Rail or Wall mounting
|
Operating Temperature
|
-25 ~ +75 C
|
Storage Temperature
|
-30 ~ +80 C
|
Humidity
|
10 ~ 90% RH, non-condensing
|
Software Specifications
Rule Configuration Website
|
Access Web server on WISE controllers to edit and upload logic rules through web browser.
|
36 IF-THEN-ELSE Logic Rules
|
3 IF conditions with AND or OR operators
3 THEN actions and 3 ELSE actions
|
48 Internal Registers
|
Hold temporary variables and read/write data via Modbus TCP address.
|
12 Timers
|
Delay / Timing functions.
|
12 Emails
|
Send Email messages to pre-set Email receivers.
|
12 CGI Commands
|
Send pre-set CGI commands.
|
12 Recipes
|
Set up THEN/ELSE action groups.
|
8 P2P remote modules
|
Set up the connection information for the remote WISE modules.
|
Modbus TCP Protocol
|
Real time control and monitoring I/O channels and system status of controllers via SCADA software
|
DI Channel
|
ON, OFF, ON to OFF, OFF to ON, Change
|
Internal Register
|
= > < ? ? (value)
|
DI Counter, DO Counter
|
= > < ? ? (value) Change
|
Timer
|
Timeout, Not Timeout
|
P2P
|
DI, AI, DI Counter, DO Counter, IR
|
Rule Status
|
Enable, Disable
|
DO Channel
|
ON, OFF, Pulse Output
|
Internal Register
|
Change the Value
|
DI Counter
DO Counter
|
Reset
|
Timer
|
Start, Reset
|
Email
CGI Commands
|
Send
|
Recipe
|
Execute
|
P2P
|
DO (On/Off), AO, IR
|
Rule Status
|
Enable, Disable
|
|
