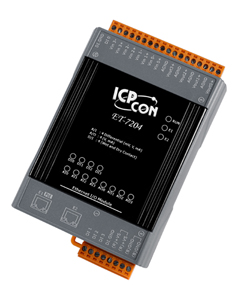

ET-7204 - 4 Channel AI and 4 Channel AO, 4 Channel DI
by ICP DAS
|
|
|
|
Ethernet I/O Module with 2-port Ethernet Switch, with 4-channels Analog Input (Current Input and voltage input), 4-channels Analog Output (Current Output), 4-channels Digital Input with counter. Support for both Modbus TCP and Modbus UDP Protocols. Built-in Web Server. Has operating temperatures of -25°C ~ +75°C (-13°F ~ +167°F).
|
|
|
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security

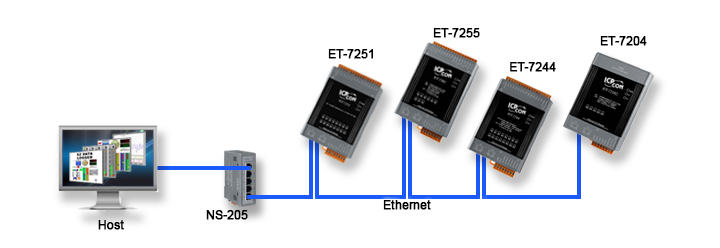

- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Wide Operating Temperature Range: -25°C ~ +75°C (-13°F ~ +167°F)
- I/O Pair Connection
- Built-in I/O
- AI: 4 Channels with 240 Vrms Overvoltage Protection
- AO: 4 Channels
- DI/Counter: 4 Channels
The ET-7204is a multi-function module with 4-channel analog inputs, 4-channel analog outputs, 4-channel digital inputs. It provides various programmable analog inputs (+/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA), and analog outputs (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input/output can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper
.
| Software |
| Built-In Web Server |
Yes |
| Web HMI |
Yes |
| I/O Pair Connection |
Yes |
| Communication |
| Ethernet Port |
2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE |
No |
| Protocol |
Modbus/TCP, Modbus/UDP |
| Security |
ID, Password and IP Filter |
| Dual Watchdog |
Yes, Module (0.8 second), Communication Programmable over DCON |
| LED Indicators |
| L1 (System Running) |
Yes |
| L2 (Ethernet Link/Act) |
Yes |
| DI/DO Status |
Yes |
| PoE Power |
- |
| 2 Way Isolation |
| Ethernet |
1500 VDC |
| I/O |
2500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
4 kV Contact for Each Terminal and 8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
+/-4 kV for Power |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| Power Requirements |
| Reverse Polarity Protection |
Yes |
| Powered from Terminal Block |
Yes, 12 ~ 48 VDC |
| Powered from PoE |
- |
| Consumption |
4.9 W (Max.) |
| Mechanical |
| Dimensions (W x L x H) |
120 mm x 76 mm x 38 mm |
| Installation |
DIN-Rail or Wall mounting |
| Environmental |
| Operating Temperature |
-25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature |
-30 C ~ +80 C (-22°F ` +176°F) |
| Humidity |
10 ~ 90% RH, non-condensing |
I/O Specifications
| Analog Input |
| Channels |
4 (Differential) |
| Sensor Type |
+/-500 mV, +/-1 V, +/-5 V, +/-10 V
+0 mA ~ +20 mA, +/-20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Individual Channel Configuration |
Yes |
| Resolution |
16-bit |
| Sampling Rate |
Normal Mode |
10 Samples/Second (Total) |
| Fast Mode |
50 Samples/Second (Total) |
| Accuracy |
Normal Mode |
+/-0.1% of FSR or better |
| Fast Mode |
+/-0.5% or better |
| Zero Drift |
+/-20 μV/°C |
| Span Drift |
+/-25 ppm/°C |
| Over Voltage Protection |
240 Vrms |
| Over Current Protection |
50 mA max. at 110 VDC/VAC max. |
| Common Mode Rejection |
±200 VDC |
| Overcurrent Protection |
Yes, 50 mA at 110 VDC |
| Normal Mode Rejection |
100 dBV |
| Temperature Output Consistency |
Yes |
| Open Wire Detection 4 ~ 20mA |
Yes |
| Input Impedence |
Voltage |
2 |
| Current |
125 Ω |
| Virtual Channel to Channel Isolation |
+/-400 VDC |
| Analog Output |
| Channels |
4 |
| Type |
+0 VDC ~ +5 VDC, +/-5 VDC, +0 VDC ~ +10 VDC,
+/-10 VDC,+0 mA ~ +20 mA, +4 mA ~ +20 mA
(Jumper Selectable) |
| Individual Channel Configuration |
Yes |
| Resolution |
12-bit |
| Accuracy |
+/-0.1% of FSR |
Voltage Output Capability |
20 mA @ 10 V |
| Open Wire Detection |
400 Ω |
| Open Wire Detection |
Yes, for 4 ~ 20 mA only |
| Power-on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
| Digital Input/Counter |
| Channels |
4 |
| Dry Contact (Source) |
On Voltage Level |
Close to GND |
| Off Voltage Level |
Open |
| Effective Distance for Dry Contact |
500 M Max. |
| Wet Contact (Sink) |
On Voltage Level |
+1 VDC Max. |
| Off Voltage level |
+3.5 VDC ~ +30 VD |
| Input Impedence |
- |
| Counters |
Max. Count |
4,294,967,285 (32 bits) |
| Max. Input Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
Overvoltage Protection |
30 VDC |
|
|
