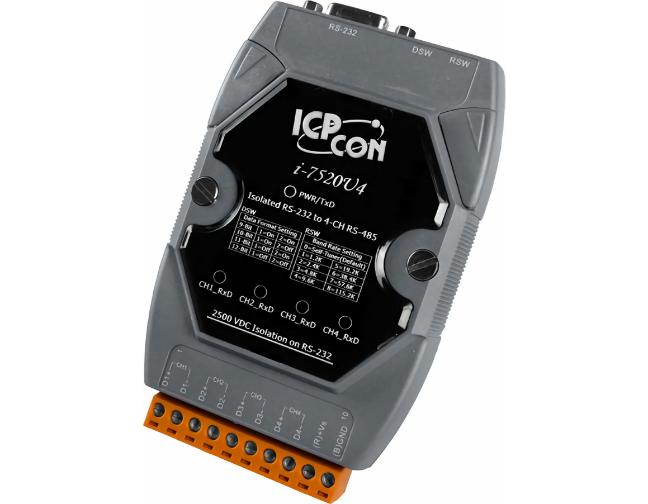

I-7520U4 - Isolated RS 232 to 4 RS 485 Active Hub. Supports operating temperatures between -25 to 75C. by ICP DAS

I-7520U4 - Isolated RS 232 to 4 RS 485 Active Hub. Supports operating temperatures between -25 to 75C.
by ICP DAS
Write a review Write a review
I-7520U4_SUMMARY.html
  • True RS-485 Star Wiring Hub
  • Independent RS-485 driver for each channel
  • LEDs for indicating TxD/RxD activity
  • Self-Tuner baud rate, 300 ~ 115200 bps and fixed baud rate setting via rotary switch, 1200 ~ 115200 bps
  • Hubs can be daisy chained for 256 channels
  • 120O termination resistor for each channel
  • Power Input, +10 ~ +30 VDC
  • Operating Temperatures, -25 C ~ +75 C
  • DIN-Rail
Mfg SKU # : I-7520U4
Our Price : $169.00
Stock : Call for Availability
Quantity :
I-7520U4_DESCRIPTION.html The I-7520U4 is isolated RS-232 to 4-ch RS-485 active star wiring hub, it has 4 independent RS-485 output channels and one RS-232 input channel. Each output channel is equipped with an individual driver. The data from a master to the input channel will simultaneously be forwarded to all the four output channels.
I-7520U4.html See DataSheet
