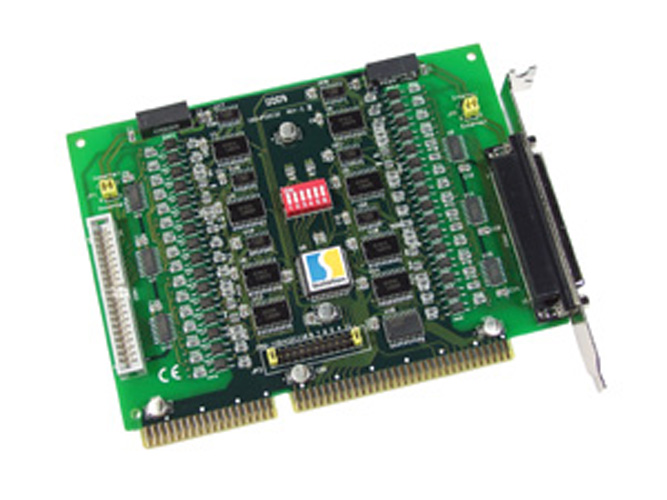

The ISO-P32C32 is a 64-channel isolated digital input board, arranged into four isolated banks. Each input chanel use a photo-coupler input which allows either internal power supply or external power selected by a jumper. Isolated input channels 0 ~15 are designed into group A, channels 16~31 into group B, Isolated input channels 32~47 are into group A, channels 48~63 are into group B. The power supply of the input port may use the external power or the the power from the PC side using DC to DC converter. The board interfaces to field logic signals, which eliminates ground-loop problems and isolates the host computer from damaging voltages. The ISO-P32C32 has one 37-pin D-sub connector and one 40-pin header. Users can connect the digital signal through the second D-sub connector. Each D-sub connector contains 16 input channels and 16 output channels.
- 32-channel optically isolated digital input
- 32-channel optically isolated digital output / Open-collector
- DC/DC converter build-in
- 3000Vdc isolation voltage
- Interrupt handling
- Interrupt source : channel 0 and channel 16
- Software :
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- Toolkit for Labview 95/98
- Toolkit for Labview NT
- Toolkit for Labview 2000/XP
- ActiveX Control (OCX) 95/98
- ActiveX Control (OCX) NT
- ActiveX Control (OCX) 2000/XP
- Toolkit for LINUX
- Toolkit for DasyLab
- Applications:
- Factory Automation
- Product Test
- Laboratory Automation
