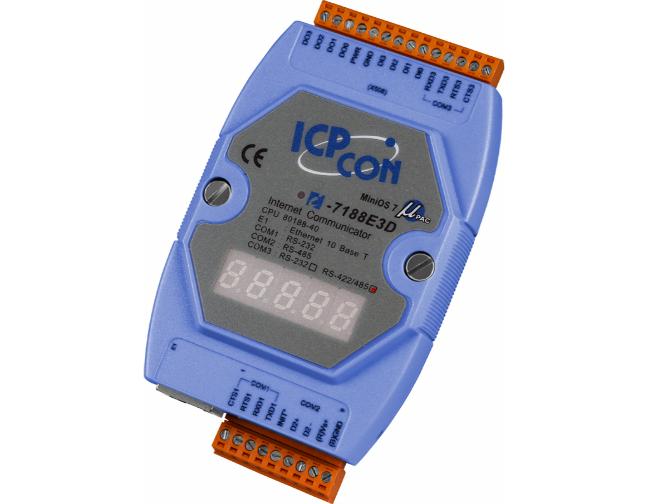

I-7188E3D - 3 Serial Ports to Ethernet Converter / Intelligent Controller with 7 segment display, 40 Mhz CPU. by ICP DAS
|
|
|
I-7188E3D_SUMMARY.html
- AMD 80188-40 Embedded CPU, or compatible
- Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
- 10BASE-T NE2000 compatible Ethernet Controller
- Reloadable Operating Software
- Remote Configuration
- Diagnostics
- COM driver support interrupt & 1K QUEUE Input & Output buffer
- Support serial port
- Built-in EEPROM
- Built-in self-tuner ASIC controller on RS-485 port
- support one RS-232 port and one RS-485 port
- 7-segment LED display for I-7188E2D
- Built-in MiniOS7
- Program download port: COM1 or Ethernet Port
|
|
|
I-7188E3D_DESCRIPTION.html
The I-7188E3D product, OEM or ODM version is welcomed. Can be used as Addressable Ethernet to RS-232/485/422 Converter.
I-7188E3D.html
CPU | CPU | 80188, 40MHz or compatible | SRAM | 384K bytes | Flash Memory | 512K bytes | EEPROM | 2K Bytes | Built-in Watchdog Timer | Yes | Communication Interface | COM1 | RS-232 (TXD, RXD, RTS, CTS, GND) | COM2 | RS-485 (D2+, D2-) | COM3 | RS-422 (TXD+, TXD-, RXD+, RXD-) | Ethernet Port | 10BASE-T NE2000 compatible Ethernet Controller | COM Port Formats | Data bit | 7, 8 | Parity | Even, Odd, None | Stop bit | 1 | Baud Rate | 115200 bps Max. | LED Display | 5-Digit 7 Segment LED Display | Yes (for I-7188E3D only) | System LED Indicator | Yes | Digital Input | Input Channels | 4 | On Voltage Level | +3.5V/DC to +30V/DC Max. | Off Voltage Level | +1V/DC Max. (Connect to GND) | Digital Output | Output Channels | 4 | Output Type | Open-collector | Max Load Current | 100mA | Load Voltage | +30V/DC Max. | Dimensions | I-7188E3(D) | 123mm x 72mm x 33mm | Operating Environment | Operating Temperature | -25C to +75C | Storage Temperature | -40C to +80C | Power | Protection | Power reverse polarity protection | Required Supply Voltage | +10 to +30V/DC (non-regulated) | Power consumption | 2W for I-7188E3 3W for I-7188E3D |
|
|
|
