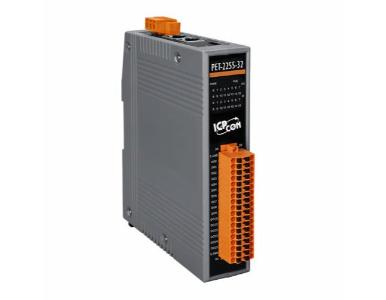

ICP DAS PET-2255-32 - 16 Channel Digital Input and 16 Channel Sink Type Digital Output, it has Web Server for Configuration
by ICP DAS
|
|
|
|
PET-2255-32_SUMMARY.html
-
Providing various digital I/O functions, the PET-2255-32 module is an Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry and is now the most commonly available means of connecting industrial electronic devices. This makes the PET-2255-32 module perfect integration with the HMI, SCADA, PLC, and other software systems.
|
|
|
PET-2255-32_DESCRIPTION.html
PET-2255-32 - 16 Channel Digital Input and 16 Channel Sink Type Digital Output, it has Web Server for Configuration,
Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols. Comes with 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
PET-2255-32.html
| Software | | Built-in Web Server | Yes | | CPU Module | | CPU | 32-bit ARM | | Watchdog Timer | Module, Communication (Programmable) | | Isolation | | 2-way Isolation | I/O: 3000 VDC | | EMS Protection | | EFT (IEC 61000-4-4) | ±4 kV for Power Line | | ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal
±8 kV Air for Random Point | | Surge (IEC 61000-4-5) | ±2 kV for Power Line | | LED Indicators | | Status | Run, Ethernet, I/O, PoE | | Digital Input/Counter | | Channels | 16 | | Type | Dry Contact
Wet Contact | | Sink/Source (NPN/PNP) | Dry: Source
Wet: Sink/Source | | ON Voltage Level | Dry: Close to GND
Wet: +5 to +50 VDC | | OFF Voltage Level | Dry: Open
Wet: +1 VDC (max.) | | Max. Counts | 4,294,967,295 (32-bit) | | Frequency | 2.5 kHz | | Input Impedance | 7.5 kN | | Overvoltage Protection | +70 VDC | | Low Pass Filter | 1 to 6500 ms (0.08 Hz to 500 Hz) | | Digital Output | | Channels | 16 | | Type | Open Collector | | Sink/Source (NPN/PNP) | Sink | | Load Voltage | +3.5 to +50 VDC | | Load Current | 500 mA/channel | | Overvoltage Protection | +60 VDC | | Overload Protection | 1.4 A (with short-circuit protection) | | Short-circuit Protection | Yes | | Power on Value | Programmable | | Safe Value | Programmable | | Ethernet | | Ports | 2 x RJ-45, 10/100 Base-TX, Switch Ports | | PoE | Yes | | LAN bypass | Yes | | Access Control | Password and IP Filter | | Protocol | Modbus TCP, Modbus UDP, MQTT, and SNMP V2c | | Power | | Reverse Polarity Protection | Yes | | Consumption | 4.8 W (max.) | | Powered from PoE | IEEE 802.3af, Class2 | | Powered from Terminal Block | +10 to +48 VDC | | Mechanical | | Casing | Plastic | | Dimensions (mm) | 31 x 157 x 126 (W x L x H) | | Installation | DIN-Rail mounting | | Environment | | Operating Temperature | -25 - +75 deg Celsius | | Storage Temperature | -40 - +80 deg Celsius | | Humidity | 10 to 90% RH, Non-condensing |
|
|
