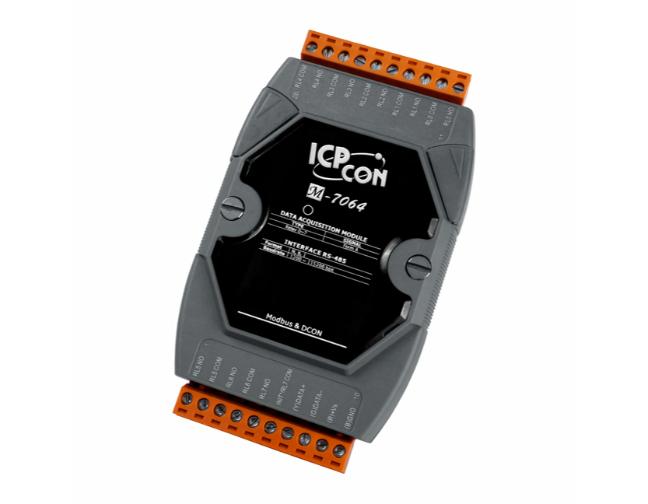

The M-7064 is equipped with 8 Form A signal relay output channels. 8 kV ESD, 4 kV EFT and 3 kV surge protection are also equipped in theM-7064 module to enhance noise protection capabilities in industrial environments, making the M-7064 an ideal solution for small signal switching applications.
M-7064.html
System Specifications
|
Interface
|
RS-485
|
|
RS-485 Bias Resistor
|
No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.)
|
|
Format
|
(N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1)
|
|
Baud Rate
|
1200 to 115200 bps
|
|
Protocol
|
Modbus RTU, DCON
|
|
Dual Watchdog
|
Yes, Module (1.6 Seconds), Communication (Programmable)
|
|
System LED Indicator
|
Yes, 1 as Power/Communication Indicator
|
|
I/O LED Indicator
|
-
|
|
7-Segment LED Display
|
-
|
|
Intra-Module Isolation, Field-to-Logic
|
2000 VDC
|
|
ESD (IEC 61000-4-2)
|
±8 kV Contact for each Terminal
±16 kV Air for Random Point
|
|
Surge (IEC 61000-4-5)
|
±3 kV for Power
|
|
Reverse Polarity Protection
|
Yes
|
|
Input Range
|
+10 ~ +30 VDC
|
|
Consumption
|
1.5 W (Max.)
|
|
Dimensions (L x W x H)
|
123 mm x 72 mm x 35 mm
|
|
Installation
|
DIN-Rail or Wall Mounting
|
|
Operating Temperature
|
-25 to +75C
|
|
Storage Temperature
|
-40 to +85C
|
|
Humidity
|
10 to 95% RH, Non-condensing
|
I/O Specifications
|
Channels
|
8 x Form A
|
|
Relay Typ
|
Signal Relay
|
|
Form A
|
Contact Rating
|
2 A @ 30 VDC
0.24 A @ 220 VDC
0.25 A @ 250 VAC
|
|
Min. Contact Load
|
10 mA @ 20 mV
|
|
Contact Material
|
Silver Nickel, Gold-covered
|
|
Operate Time
|
3 ms (typical)
|
|
Release Time
|
4 ms (typical)
|
|
Mechanical Endurance
|
108 ops
|
|
Electrical Endurance
|
2 x 105 ops
|
|
Surge Strength
|
2000 VDC
|
|
Power-on Value
|
Yes
|
|
Safe Value
|
Yes
|
|
