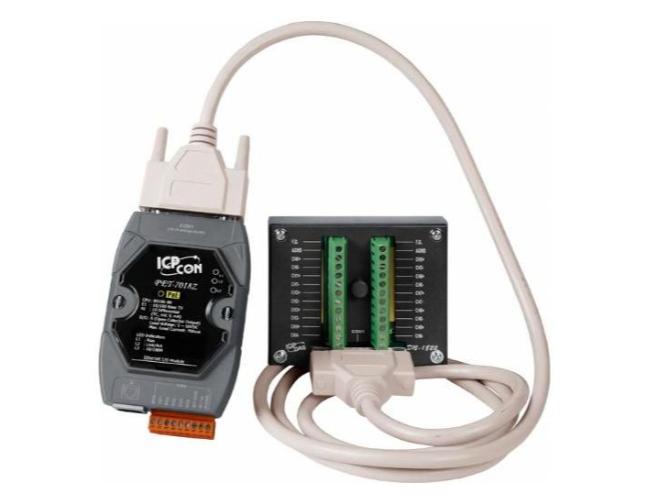

ICP DAS PET-7018Z/S2 - 10-channel Thermocouple Input, Voltage Input, Analog Input (Current Input) with High Voltage Protection
by ICP DAS
|
|
|
|
PET-7018Z_S2_SUMMARY.html
- IEEE 802.3af-compliant Power over Ethernet (PoE)
- Built-in Web Server
- Modbus/TCP Protocol
- I/O Pair Connection
- 10/100 Base-TX Ethernet
- Support Current Input, Voltage Input and Thermocouple Input
- Individual Channel Configuration
- Open Wire Detection
- Over Voltage Protection is up to 240 Vrms
- 6-channel Digital Output for Alarm Output
- Automatic Compensation Each Channel
- 2-way Isolation/ESD Protection
- Applications:
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis
- Testing Equipment
|
|
|
PET-7018Z_S2_DESCRIPTION.html
PET-7018Z/S2 - 10-channel Thermocouple Input, Voltage Input, Analog Input (Current Input) with High Voltage Protection and 6-channel Isolated Digital Output PoE Data Acquisition Module, communicable and Powered over Ethernet and Modbus TCP Protocol. Has operating temperatures range -25°C ~ +75°C (-13°F ~ +167°F)
PET-7018Z_S2.html
| CPU |
| CPU |
80186 CPU (80MHz) |
| SRAM |
512K Bytes |
| Flash Memory |
512K Bytes |
| EEPROM |
16K Bytes |
| Dual Watchdog |
Yes |
| Communication |
| Ethernet Port |
10/100 Base-TX (With Link, Activity LED
Indicator)
Automatic MDI/MDI-X |
| Analog
Input |
| Input Channels |
10 Differential |
| Input Type |
±15 mV, ±50 mV, ±100 mV, ±500
mV, ±1 V, ±2.5 V
±20 mA, 0~20 mA, 4~20 mA (Requires Optional External 125
Ohms Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710) |
| Resolution |
16-bit |
| Sampling Rate |
10 samples/Sec. total |
| Accuracy |
±0.1% or better |
| BandWidth |
15.7 Hz |
| Zero drift |
±0.5 µV/C |
| Span drift |
±25 ppm/C |
| Input Impedance |
>300K Ohms |
| Common Mode Rejection |
150 dB min. |
| Normal Mode Rejection |
100 dB |
| Open Thermocouple Detection
|
Yes |
| Individual Channel
Configuration |
Yes |
| Over Voltage Protection |
240 Vrms |
| ESD Protection |
4kV Contact for each
terminal, and 8KV Air for random point |
| EFT Protection |
4kV for Power |
| Digital
Output |
| Output Channels |
6 (Sink) |
| Output Type |
Isolated Open-Collector |
| Max Load Current |
700mA/Channel |
| Load Voltage |
5 ~ 50 VDC |
| DB-1820 |
| Wire Strip Length |
4~5 mm |
| Wire Range |
16~24 AWG |
| 2 Way
Isolation |
| Ethernet |
1500 VDC |
| AI and DO |
2500 VDC |
| LED Indicator
|
| PoE |
PoE On |
| L1 |
Run |
| L2 |
Link/Act |
| L3 |
10/100 M |
| Mounting |
| Din Rail Mount |
Yes |
| Wall Mount |
Yes |
| LED Indicator
|
| PoE |
PoE On |
| L1 |
Run |
| L2 |
Link/Act |
| L3 |
10/100 M |
| Power Requirements
|
| IEEE 802.3af |
Class 1 |
| Required Supply Voltage |
Powered by Power-Over-Ethernet (PoE) or auxiliary power +12
~ 48 VDC(non-regulated) |
| LED Indicator |
Yes |
| Power Consumption |
0.12 A @ 24 VDC Max. |
| Environment
|
| Operating Temperature |
-25C ~ +75C (-13F ~ +167F) |
| Storage Temperature |
-30 ~ +80C |
| Relative Humidity |
5 ~ 90% RH, non-condensing |
| Dimensions
|
| Dimensions( W x H x D) |
123 mm x 72 mm x 35 mm |
| Thermocouple
Type |
Range (C)
|
| J |
-210 ~ +760 |
| K |
-270 ~ +1372 |
| T |
-270 ~ +400 |
| E |
-270 ~ +1000 |
| R |
0 ~ +1768 |
| S |
0 ~ +1768 |
| B |
0 ~ +1820 |
| N |
-270 ~ 1300 |
| C |
0 ~ 2320 |
| L |
-200 ~ +800 |
| M |
-200 ~ +100 |
| L (DIN43710) |
-200 ~ +900 |
|
|
|
|
