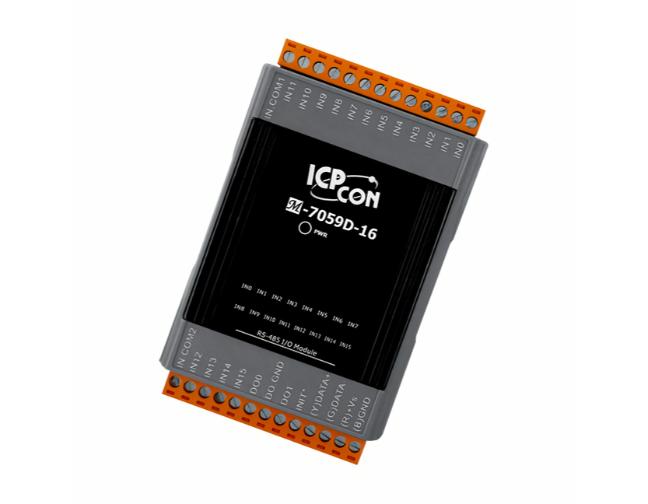

M-7059D-16 - 16-ch Isolated DI (Wet, 10~80 VAC/15~80 VDC) Module with LED Display by ICP DAS
|
|
|
M-7059D-16_SUMMARY.html
- AC/DC Digital Input: 16 Channels
- Digital Output: 2 Channels
- All Digital Input Channels Can be used as 16-bit Counters
- Channel-to-Channel Isolation
- ±4 kV ESD Protection
- 3750 VDC Isolation Voltage
- Dual Watchdog
- Wide Operating Temperature Range: -25 to +75C
|
|
|
M-7059D-16_DESCRIPTION.html
The M-7059D-16 module provides 16 channels for AC/DC digital input, each of which features channel to channel photocouple isolation, and two channels for digital output. All digital input channels are also able to be used as 16-bit counters. The module has 16 LED indicators that can be used to monitor the status of the digital input channels. That also provides ±4 kV ESD, ±4 kV EFT and ±2 kV Surge protection, as well as 3750 VDC intra-module isolation to enhance noise protection capabilities in harsh industrial environments.
M-7059D-16.html
CPU Module |
Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
Isolation |
Intra-module Isolation |
3750 VDC |
EMS Protection |
EFT (IEC 61000-4-4) |
±4 kV for Power Line |
ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal ±8 kV Air for Random Point |
Surge (IEC 61000-4-5) |
±2 kV for Power Line |
LED Indicators |
Status |
1 x Power and Communication 16 x Digital Input |
Digital Input/Counter |
Channels |
16 |
Type |
Wet Contact |
Sink/Source (NPN/PNP) |
Sink/Source |
Wet Contact, ON Voltage Level |
10 ~ 80 VAC 15 ~ 80 VDC |
Wet Contact, OFF Voltage Level |
3 VAC/VDC Max. |
Max. Counts |
65535 (16-bit) |
Frequency |
100 Hz |
Min. Pulse Width |
5 ms |
Input Impedance |
10 kΩ |
Overvoltage Protection |
120 VAC/VDC Max. |
Digital Output |
Channels |
2 |
Type |
Isolated Open Collector |
Sink/Source (NPN/PNP) |
Sink |
Load Voltage |
+5 ~ +50 VDC |
Max. Load Current |
600 mA/Channel |
Overvoltage Protection |
60 VDC |
Overload Protection |
1.4 A |
Short-Circuit Protection |
Yes |
Power on Value |
Yes, Programmable |
Safe Value |
Yes, Programmable |
COM Ports |
Ports |
1 x RS-485 |
Baud Rate |
1200 ~ 115200 bps |
Data Format |
(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
Protocol |
Modbus RTU, DCON |
Power |
Reverse Polarity Protection |
Yes |
Input Range |
+10 ~ +30 VDC |
Consumption |
0.4 W |
Mechanical |
Dimensions (mm) |
121 x 76 x 42 (W x L x H) |
Installation |
DIN-Rail |
Environmental |
Operating Temperature |
-25 ~ +75C |
Storage Temperature |
-40 ~ +85C |
Humidity |
10 ~ 95% RH, Non-condensing |
|
