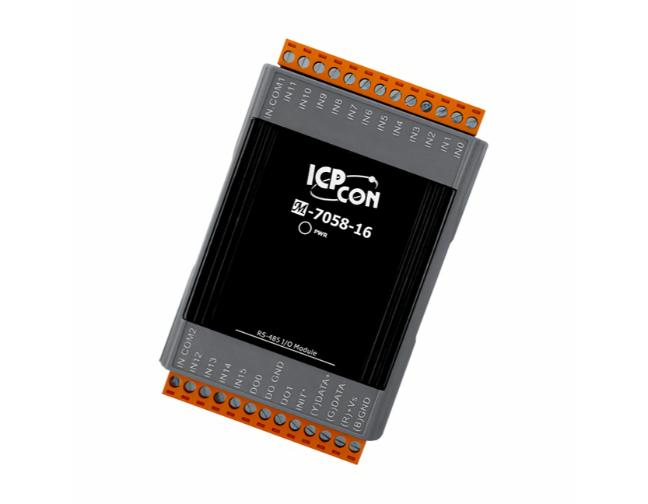

M-7058-16 - 16-ch Isolated DI (Wet, 80~250 VAC/VDC) Module
by ICP DAS

The M-7058-16 module provides 16 channels for AC/DC digital input, each of which features Channel to channel photocouple isolation, and two channels for digital output. All digital input channels are also able to be used as 16-bit counters. The module provides ±4 kV ESD, ±4 kV EFT and ±2 kV Surge protection, as well as 3750 VDC intra-module isolation to enhance noise protection capabilities in harsh industrial environments.

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation	3750 VDC
EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal ±8 kV Air for Random Point
Surge (IEC 61000-4-5)	±2 kV for Power Line
LED Indicators
Status	1 x Power and Communication
Digital Input/Counter
Channels	16
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink/Source
Wet Contact, ON Voltage Level	80 ~ 250 VDC 80 ~ 250 VAC
Wet Contact, OFF Voltage Level	30 VAC/VDC Max.
Max. Counts	65535 (16-bit)
Frequency	100 Hz
Min. Pulse Width	5 ms
Input Impedance	150 kΩ
Overvoltage Protection	300 VAC/VDC Max.
Digital Output
Channels	2
Type	Isolated Open Collector
Sink/Source (NPN/PNP)	Sink
Load Voltage	+5 ~ +50 VDC
Max. Load Current	600 mA/Channel
Overvoltage Protection	60 VDC
Overload Protection	1.4 A
Short-Circuit Protection	Yes
Power on Value	Yes, Programmable
Safe Value	Yes, Programmable
COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol	Modbus RTU, DCON
Power
Reverse Polarity Protection	Yes
Input Range	+10 ~ +30 VDC
Consumption	0.4 W
Mechanical
Dimensions (mm)	121 x 76 x 42 (W x L x H)
Installation	DIN-Rail
Environmental
Operating Temperature	-25 ~ +75C
Storage Temperature	-40 ~ +85C
Humidity	10 ~ 95% RH, Non-condensing
