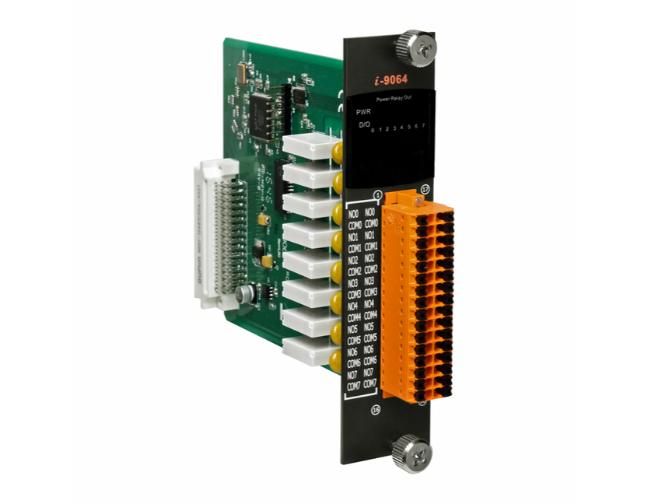

The I-9064 is equipped with 8 Form A Relay Output channels, designed for high-power applications. The I-9064 includes 8 LED indicators used to monitor the status of the Relay Output channels, and confi guring power-on and safe values. 4 kV ESD protection and 3000 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
I-9064.html
|
System LED Indictor
|
1 LED as Power Indicator
|
|
I/O LED Indicator
|
8 LEDs as Digital Input Indicators
|
|
Intra-module Isolation, Field-to-Logic
|
3000 VDC
|
|
ESD (IEC 61000-4-2)
|
�4 kV Contact for each Terminal
�8 kV Air for Random Point
|
|
Power Consumption
|
1 W Max.
|
|
Dimensions (L x W x H)
|
144 mm x 31 mm x 134 mm
|
|
Operating Temperature
|
-25C ~ +75C
|
|
Storage Temperature
|
-40C ~ +85C
|
|
Humidity
|
10 ~ 90% RH, non-condensing
|
I/O Specifications
|
Channels
|
8 (Form A)
|
|
Type
|
Power Relay
|
|
Contact Rating
|
5A @ 250 VAC (Resistive Load)
5A @ 30 VDC (Resistive Load)
|
|
Min. Contact Load
|
10mA @ 5 VDC
|
|
Contact Material
|
Gold-plated Silver Cadmium Alloy
|
|
Operate Time
|
6 mS (Max.)
|
|
Release Time
|
3 mS (Max.)
|
|
Mechanical Endurance
|
2 x 107 ops.
|
|
Electrical Endurance
|
1 x 105 ops.
|
|
Power-on Value
|
Yes
|
|
Safe Value
|
Yes
|
