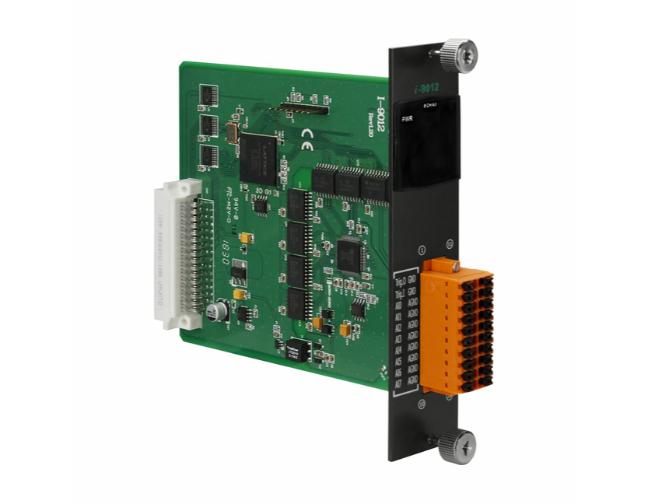

I-9012 - 200 kS/s, 16-bit 8 channels Simultaneously Sampled Analog Input Module (RoHS)
by ICP DAS
|
|
|
|
I-9012_SUMMARY.html
- 16-bit AD Converter
- Simultaneously Sampled
- 200 kHz sample rate at single channel
- 8 k byte FIFO
- 4 kV ESD Protection
- 2500 VDC Intra-module Isolation
- Wide Operating Temperature Range: -25 to +75 C
|
|
|
I-9012_DESCRIPTION.html
The I-9012 is a high performance Analog Input module with 16 bits of resolution and a sampling rate up to 200 kS/s per channel.
I-9012.html
I/O Specifications
|
Range
|
8-ch single-ended
|
|
Input Range
|
±5 V, ±10 V
|
|
Sample Rate
|
Single Channel Pacer Internal Mode: 200 kS/s
Single Channel Pacer External Mode: 200 kS/s
Single Channel Polling Mode: 40 kS/s
|
|
FIFO
|
8 k byte
|
|
Accuracy
|
0.05 % of FSR @ 25°C
|
|
AD Trigger Mode: Polling
|
Software trig
|
|
AD Trigger Mode: Pacer
|
Internal Clock
External Clock
|
|
Frequency Range
|
16 Hz ~ 200 KHz
|
|
Compatibility
|
5 V / TTL
|
|
Output Type
|
Pluse
|
|
Pluse Width
|
100 ns / 10 MHz
|
|
Frequency Range
|
1 Hz ~ 200 KHz
|
|
Compatibility
|
Falling Edge
|
|
Output Type
|
< 5 V
|
|
Pluse Width
|
> 0.8 V
|
System Specifications
|
System LED Indict
|
1 LED as Power Indicator
|
|
I/O LED Indicator
|
Yes
|
|
Intra-module Isolation, Field-to-Logic
|
2500 VDC
|
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for each Terminal
±8 kV Air for Random Point
|
|
Power Consumption
|
1 W Max.
|
|
Dimensions (W x L x H)
|
31 mm x 134 mm x 144 mm
|
|
Operating Temperature
|
-25 to +75°C
|
|
Storage Temperature
|
-40 to +85°C
|
|
Humidity
|
10 ~ 90% RH, non-condensing
|
|
