I-9017 - 14-bit, 100 K sampling rate, 30/15-channel analog input module. Operating temperature Range: -25 to +75C by ICP DAS
|
|
|
I-9017_SUMMARY.html
- I-9017
- 16 Single-ended/8 Differential Input Channels
- Input Voltage Range : ±1.25 V, ±2.5 V, ±5 V, ±10 V
- Input Current Range : 0 mA ~±20 mA
- Input Impedance 20 K, 200 K, 20 M
- 14-bit 100 KHz AD Converter
- A/D Trigger Mode: Polling, Interrupt
- 4 kV ESD Protection
|
|
|
I-9017_DESCRIPTION.html

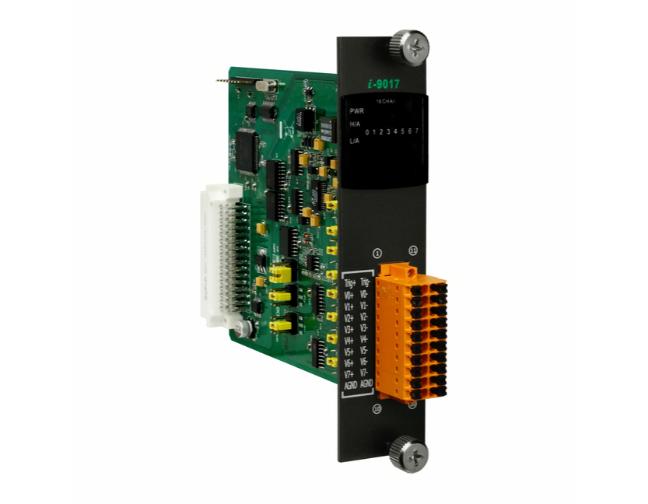

The I-9017 is an Analog Input module with 14 bits of resolution and a sampling rate of up to 100 kS/s. The I-9017 is designed to hold up to 16 single-ended or 8 differential input channels, which is selectable via a jumper setting. I-9017 has 4 kV ESD protection as well as 2500 Vrms intra-module isolation.
I-9017.html
System LED Indict
|
1 LED as Power Indicator
|
I/O LED Indicator
|
16 LED as Status Indicator
|
Intra-module Isolation, Field-to-Logic
|
2500 Vrms
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for each Terminal ±8 kV Air for Random Point
|
Power Consumption
|
2 W Max.
|
Dimensions (L x W x H)
|
144 mm x 30.3 mm x 134 mm
|
Operating Temperature
|
-25C ~ +75C
|
Storage Temperature
|
-40C ~ +85C
|
Humidity
|
10 ~ 90% RH, non-condensing
|
I/O Specifications
Channels
|
16-ch Single-ended/8-ch Differential
|
Voltage Input Range
|
±1.25, ±2.5, 5 V, ±10 V
|
Current Input Range
|
-20 mA ~ +20 mA (Requires Optional External 125 Ω Resistor)
|
Resolution
|
14-bit
|
Accuracy
|
±0.1% of FSR
|
Sample Rate
|
Single Channel Polling Mode :100K S/s Single Channel Interrupt Mode: 50K S/s 15-channel Scan
Mode : 16 K S/s
|
Input Bandwidth
|
100 KHz
|
Zero Drift
|
± 0.1 uV/C
|
Span Drift
|
± 10 ppm/C
|
Input Impedance
|
20 K, 200 K, 20 M (Jumper Selectable)
|
|
