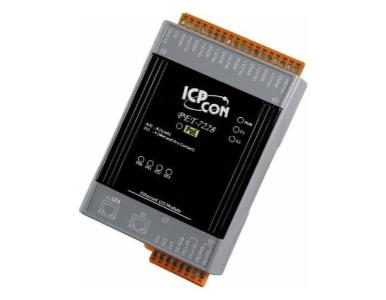

PET-7228 - PoE Ethernet I/O Module with 2-port Ethernet Switch and 8-channels Analog Outputs, Support for Modbus TCP
by ICP DAS
|
|
|
|
PET-7228_SUMMARY.html
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75C
- I/O Pair Connection
- Built-in I/O
|
|
|
PET-7228_DESCRIPTION.html
The PET-7228 is PoE Ethernet I / O module with two-port Ethernet switch and 8-channels analog output, Support for both Modbus TCP and Modbus UDP Protocols. It is equipped with multiple programmable analog output options (+/- 5 V, +/- 10 V, 0 ~ 20 ~ 4 mA and 20 mA), allowing each analog output to be programmed to accept either current or voltage as output depending upon the position or correspond thing jumper. The PET-7228 is fully RoHS compliant and provide 4 kV ESD protection as well as 2500 VDC intra-module isolation
PET-7228.html
|
Built-In Web Server
|
Yes
|
|
Web HMI
|
Yes
|
|
I/O Pair Connection
|
Yes
|
|
Ethernet Port
|
2 x RJ-45, 10/100 Base-TX, Swtich Ports
|
|
PoE
|
-
|
|
Protocol
|
Modbus/TCP, Modbus/UDP
|
|
Security
|
ID, Password and IP Filter
|
|
Dual Watchdog
|
Yes, Module (0.8 second), Communication (Programmable)
|
|
for System Running
|
Yes
|
|
for Ethernet Link/Act
|
Yes
|
|
for DI/DO status
|
Yes
|
|
for PoE Power
|
-
|
|
Ethernet
|
1500 VDC
|
|
I/O
|
2500 VDC
|
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
|
|
EFT (IEC 61000-4-4)
|
±4 kV for Power Line
|
|
Reverse Polarity Protection
|
Yes
|
|
Powered from Terminal Block
|
12 ~ 48 VDC
|
|
Powered from PoE
|
-
|
|
Consumption
|
6 W
|
|
Dimensions (L x W x H)
|
120 mm x 76 mm x 38 mm
|
|
Installation
|
DIN-Rail or Wall mounting
|
|
Operating Temperature
|
-25C ~ +75C
|
|
Storage Temperature
|
-30C ~ +80C
|
|
Humidity
|
10 ~ 90% RH, Non-condensing
|
|
