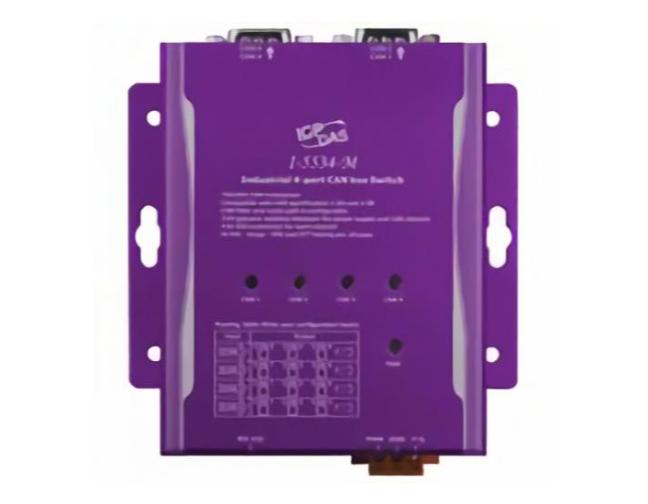

| Hardware |
| Controller |
High Performance Microcontroller |
| RTC (Real Time Clock) |
No |
| Watchdog |
Watchdog IC |
| ESD Protection |
4 kV Contact for each channel |
| CAN Interface |
| Transceiver |
NXP TJA1042 |
| Channel number |
4 |
| CAN Connector |
9-pin male D-Sub with CAN_GND, CAN_SHLD, CAN_H, CAN_L |
| CAN Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate (bps) |
5k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and
user-defined |
| Baud Rate Selection |
Selectable by rotary switch |
| Isolation |
3000 VDCfor DC-to-DC, 2500 Vrms for photo-couple |
| Terminator Resistor |
Selectable 120O terminator resistor by internal jump |
| Transmission Distance (m) |
Depend on baud rate (for example, max. 1000 m at 50 kbps ) |
| CAN Filter |
Configurable by user |
| UART Interface |
| RS-232 |
1 port (for configuration) |
| RS-232 Connector |
9-pin screwed terminal block (TxD, RxD, GND ) |
| LED |
| Round LED |
CAN status LED x 4 , Power LED x 1 |
| Power |
| Input range |
Unregulated +10 ~ +30 VDC |
| Power Consumption |
1.5W |
| Mechanism |
| Installation |
Wall-Mounting |
| Casing |
Aluminum metallic case |
| Dimensions |
116.5 x 127 x 61.3 mm (W x L x H) |
| Environment |
| Operating Temp. |
-25 ~ 75 ? |
| Storage Temp. |
-30 ~ 80 ? |
| Humidity |
10 ~ 90% RH, non-condensing |
| ESD protection |
4 kV Contact for each channel |
| EFT protection |
500V for signal, 1000V for power |
| EMI certification |
30M ~ 1G pass |
| Hi-pot protection |
1kV pass |
| Surge protection |
1kV pass |
