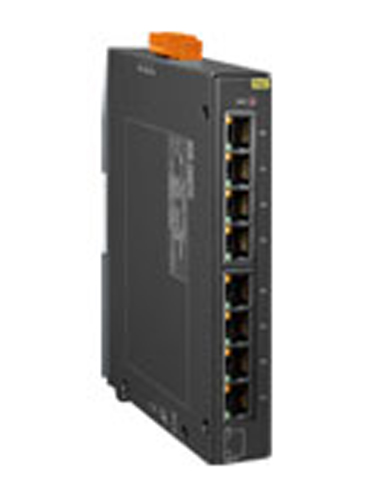

ICP DAS NSM-208PSE-4 - Metal Case of NS-208PSE with 4 ports PoE
by ICP DAS

8-Port Industrial 10/100 Mbps Ethernet with 4-PoE (PSE) Switch, Metal Case

Description
Specification
Datasheet

The NS-208PSE-4/NSM-208PSE-4 is an 8-port unmanaged Ethernet with 4-PoE (Power-over-Ethernet) switch, it supports 4-PoE port which are classified as power source equipments (PSE).The NS-208PSE-4/NSM-208PSE-4 makes centralized power supply come true and provides up to 15.4 watts of power per port. The NS-208PSE-4/NSM-208PSE-4 can be used to power IEEE802.3af compliant powered devices (PD) by Ethernet cable and eliminates the need for additional power wiring.

Features

Automatic MDI/MDI-X crossover for plug-and-play
Each port supports both 10/100Mbps speed auto negotiation
Store-and-forward architecture
Full duplex IEEE 802.3x and half duplex backpressure flow control
4 PoE ports with Power Sourcing Equipment (PSE) operation
Auto-detection of PD (powered devices) and automatic power management
Over-temperature, over-current and over/under-voltage detection
Supports operating temperatures from –40 ~ +75°C
DIN-Rail

Technology
Standards	IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet)
Processing Type	Store & forward, wire speed switching
MAC Addresses	1024
Memory Bandwidth	3.2 Gbps
Frame Buffer Memory	512 Kbit
Flow Control	IEEE802.3x flow control, back pressure flow control
Interface
RJ-45 Ports	10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
LED Indicators	Power, Link/Act , Power Device is detected
Ethernet Isolation	1500 Vrms 1 minute
+/-6 kV EMS Protection	Yes
Power Input
Input Voltage Range	+46 ~ +55 VDC for PoE output
Power Consumption	0.12 A @ 48 VDC with PoE Off
Protection	Power reverse polarity protection
Frame Ground for EMS Protection	Yes
Connection	3-Pin Removable Terminal Block
PoE Output
PoE Compliance	100% IEEE 802.3af compliant
PoE Classification	PSE (Power Sourcing Equipment)
PoE Voltage	+46 ~ +55 VDC depending on power input
PoE Power	Up to 15.4 watts per channel
PoE Operation	Automatic detection and power management
Mechanical
Casing	Metal (IP30 Protection)
Dimensions (W x L x H)	25 mm x 168 mm x 119 mm
Installation	DIN-Rail
Environmental
Operating Temperature	-40 °C ~ +75 °C
Storage Temperature	-40 °C ~ +85 °C
Ambient Relative Humidity	10% ~ 90% RH, non-condensing
