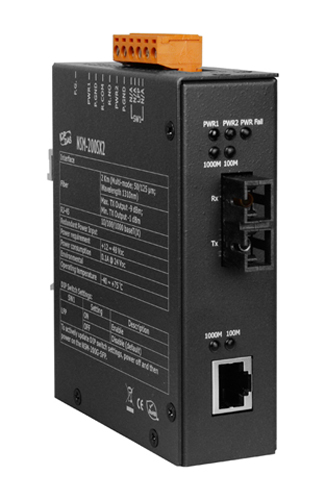

NSM-200SX2 - 1000 Base-T to 1000 Base-LX/SX Fiber Media Converter, 2 KM distance
by ICP DAS
|
|
|
|
1000 Base-T to 1000Base-LX/SX Fiber Media Converter (SC type connector). +12 VDC ~ +48 VDC (Non-isolated) 2 km distance, 0.1 A @ VDC Power Consumption. Provides Link Fault Pass-through (LFP). Has operating temperature range of -30°C ~ +75°C (-22°F ~ +167°F)
|
|
|
ICP DAS USA's NSM-200SX2 is a rich 10/100/1000 SFP Media Converter which transparently connects copper to SFP for multimode or single mode fiber. The NSM-200SX2 10/100/1000 Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices. The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by ICP DAS or other manufacturers of MSA (Multi-source Agreement) compliant SFPs.
- Provides 1 x 1000 Mbps fiber port with SC type connector for 1000 Base-SX/LX device
- Supports wide operating temperatures from -30°C ~ +75°C (-22°F ~ +167°F)
- Transparent to jumbo packets up to 10 KB
- Provides Link Fault Pass-through (LFP)
- Supports redundant +12 VDC ~ +48 VDC power input
| Interface |
| RJ-45 Port |
10/100/1000 Base-T(X) auto negotiation speed and auto MDI/MDI-X connection |
| Fiber Port |
Multi-mode: Up to 2 Km; Single-mode: Up to 10 km |
| LED Indicators |
PWR1, PWR2, P-Fail, Link/Act, 100M, 1000M |
| Optical Fiber |
50/125 μm (Multi-mode)
|
| Distance |
2 km |
| Wavelength |
1310 nm |
| Min. TX Output |
-9 dBm |
| Max. TX Output |
-1 dBm |
| Max. RX Sensitivity |
-19dBm |
| Min. RX Overload |
-1 dBm |
| Power |
| Input Voltage Range |
+12 VDC ~ +48 VDC (Non-isolated) |
| Power Consumption |
0.1 A @ 24 VDC |
| Mechanical |
| Dimension (W x L x H) |
34 mm x 111 mm x 121 mm |
| Installation |
DIN-Rail Mounting (optional wall mounting kits) |
| Environmental |
| Operating Temperature |
-30°C ~ +75°C (-22°F ~ +167°F) |
| Storage Temperature |
-40°C ~ +85°C (-40°F ~ +185°F) |
| Ambient Relative Humidity |
10% ~ 90% RH, non-condensing |
|
|
|
