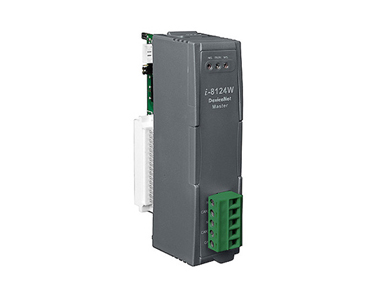

I-8124W-G - 1 Port DeviceNet Master Slot
by ICP DAS

The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is especially suited for network "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but messages are transmitted according to highest priority. The I-8124W CAN controller can represent an economic solution of DeviceNet application and be a set as a master device. It is a "Predefined Master Connection Set" and supports Group 2 only Server functions to communication with slave devices. With an independent CAN bus communication port having a 5-pin screw terminal connector, it has the ability to cover a wide range of DeviceNet applications. The I-8124W uses the new CAN controller Phillips SJA1000T and transceiver 82C250/251, which provides for bus arbitration, error detection with auto correction and re-transmission function. It can be installed on a WinPAC or ViewPAC series PAC devices. It's most popular application is in the industrial automation, building automation,vehicle, marine, and embedded control network.

• 3 indication LEDs (Error,Status,Bus LEDs)
• Programmable master MAC ID
• Programmable transfer-rate 125K, 250K, 500K
• Support maximum nodes up to 64
• Support Group 2 and UCMM functions
• The maximum Fragment number is (Input/Output) up to 64
• Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
• Support auto-scan slave device function
• Support on-line add device into and remove device from network
• Support auto-reconnect when the connection is broken

Software Architecture

Software CPMUtility Features

The CPMUtility utility can easily to access the I/O data of all the slave devices. The users can monitor the input data of the specific slave device and change the output data to the remote slave device with this utility.

• Auto-scan all the CANopen master devices that the CPMUtility has supported
• Auto-scan all the CANopen slave devices on the CANopen network
• Support the EDS file
• Dynamic PDO object setting easily
• Guarding Event and Heartbeat Event detection
• EMCY message receiving
• Maximum 5 SYNC message producers per CANopen master
