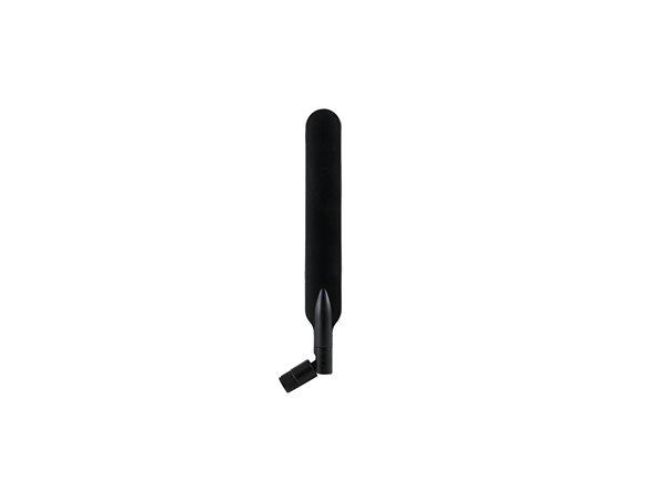

ANT-5G-ASM-02 - 2 dBi LTE/5G NR dipole antenna with SMA (male) connector
by MOXA

The ANT-5G-ASM-02 Series is an omnidirectional lightweight compact antenna suitable for LTE, and 5G NR bands. The antenna provides a gain of 2 dBi and is designed to operate in temperatures ranging from -40 to 85C.

Antenna Characteristics

• Frequency

  • 617 to 960 MHz
    1452 to 1575.412 MHz
    1710 to 2690 MHz
    3300 to 4200 MHz
    4400 to 5000 MHz
    5150 to 7150 MHz

• Antenna Type

  • Omni-directional

• Typical Antenna Gain

  • 1 dBi @ 617 to 960 MHz (5G NR n28, 71)
    2.5 dBi @ 1452 to 1575.412 MHz (5G NR n50, 51, 74, 75, 76 )
    2.5 dBi @ 1710 to 2690 MHz (5G NR n1, 2, 3, 7, 25, 34, 38, 39, 40, 41, 65, 66, 80, 84, 86)
    2.5 dBi @ 3300 to 4200 MHz (5G NR n77, 78)
    2.5 dBi @ 4400 to 5000 MHz (5G NR n79)
    2.5 dBi @ 5150 to 7150 MHz


• Connector

  • SMA (male)

• Impedance

  • 50 ohms

• Polarization

  • Vertical
    Linear

• HPBW/Horizontal

  • 360

• V.S.W.R.

  • < 3 @ 617 to 960 MHz
    < 3 @ 1452 to 1575.412 MHz
    < 3 @ 1710 to 2690 MHz
    < 3 @ 3300 to 4200 MHz
    < 3 @ 4400 to 5000 MHz
    < 3 @ 5150 to 7150 MHz

Physical Characteristics

• Weight

  • 30 g (0.07 lb)

• Length

  • 205 mm (8.07 in)

• Radome Color

  • Black

• Radome Material

  • Plastic

• Installation

  • Straight mount

Environmental Limits

• Operating Temperature

  • -20 to 65C (-4 to 149F)

• Storage Temperature (package included)

  • -30 to 70C (-22 to 158F)

• Ambient Relative Humidity

  • 5 to 95% (30C, non-condensing)

ANT-5G-ASM-02.pdf

406 K
