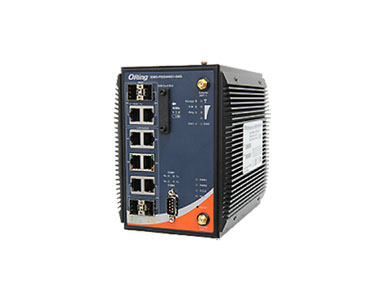

IGMG-P83244GC+-D4G - Industrial 4G LTE Cellular M2M IoT Gateway with 4x10/100/1000Base-T(X) and 4xGigabit SFP combo ports, 2xSe
by ORing Industrial Networking

Hardware features: IGMG-P83244GC+-D4G is a breakthrough IoT M2M industrial grade gateway which is a combination of a powerful hardware and software capabilities. It uses dual core ARMv7 Cortex-A9 CPU with operating speed up to 1.3 GHz. Supporting multiple I/O it has integrated 8-port (4+4 Combo for copper and fiber) Gigabit Ethernet switch including 6 LAN and 2 WAN ports. Additionally there are two serial ports for RS-232/422/485 and RS-422/485 communication standards. All gateway’s ports support Modbus TCP and RTU protocols for connection with Ethernet and serial end-devices like PLCs, machines and sensors at factory floor, providing possibilities of monitoring and controlling them. IGMG-P83244GC+-D4G has successfully passed 4G LTE connectivity tests with AT&T® and is certified to operate in this carrier’s network. With telecom certification and dual SIM card support for redundant or load balance function it can provide the highest reliability level for cellular connectivity. Thanks to built-in mSATA SSD storage with 64GB capacity (optionally up to 256GB) provides capabilities for huge IoT data logging. Rugged and yet fanless design for -40 to +75°C degrees of operating temperature range makes IGMG-P83244GC+-D4G a perfect solution for industrial applications.



Software features: IGMG-P83244GC+-D4G introduces cutting edge features and defines new standards for IoT gateways market. Thanks to ORing branded Open Gateway software feature it simplifies to maximum IoT solution deployment. Connecting big variety of end-devices, very often with different communication interfaces, to different cloud platforms has never been so easy. Open Gateway protocol converter from a very simple and user-friendly web-based configuration interface turns the gateway into a transparent man in the middle between Modbus field devices and MQTT/CoAP/LWM2M servers.



Built-in Node-RED free open source programming tool software, which can be activated from IGMG-P83244GC+-D4G web interface with just single button click, provides useful and powerful flow-based development features. Browser-based editor makes it easy to wire together data flows using the wide range of nodes in the palette, at the same time providing a capability for rapid Dashboard prototyping including basic user interface components.



The most powerful feature of the IGMG-P83244GC+-D4G gateway is the Ignition SCADA software installed on-board. Ignition, designed by Inductive Automation, is a web-deployed industrial application platform for HMI/SCADA/IIoT that’s been deployed in more than 100 countries. Ignitionprovides unlimited licensing and open-standards connectivity. Thanks to the user-friendly and easy-to-learn dashboard designer including an impressive number of standard and customized components Ignition provides powerful visualization tools for displaying, controlling, alarming, historian, and reporting. IGMG-P83244GC+-D4G supports both Ignition and Ignition Edge. Depending on application needs, either can be easily chosen and activated by the user from the gateway’s web interface. As the IGMG-P83244GC+-D4G gateway provides SSD storage for massive data collecting, it also includes integrated PostgreSQL Database, which by default is already connected with Ignition software. Users do not have to worry about additional software installation and configuration, as the gateway is ready out of the box.

Both Ignition versions by default run in a trial mode, which means a new user can easily learn how to use the software and test it before deploying it in the real system. The following table explains the differences between Ignition and Ignition Edge.

Physical Ports
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX	4
Gigabit Combo port with 10/100/1000Base-T(X) and 100/1000Base-X SFP ports	4
Cellular Interface
Cellular Standard	GSM / GPRS / EGPRS / EDGE / WCDMA / HSDPA / HSUPA/HSPA+/LTE
SIM card slot	2
Band options	America(US) LTE: 700/1700/2100/ MHz UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+: 800/850/1900/2100 MHz GSM/GPRS/EDGE: 850/900/1800/1900 MHz Europe(EU) LTE: FDD:2100(B1)/1800(B3)/2600(B7)/900(B8)/800(B20) MHz TDD:TDD:2600(B38)/2300(B40)/2500(B41) MHz UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+: 2100(B1)/900(B8) MHz GSM/GPRS/EDGE: 900/850 MHz
Antenna Connector (Reverse SMA Female)	2
Serial Ports
Connector	Terminal Block x 1 (Port 1), DB9 male x 1 (Port 2)
Operation Mode	Port 1 : RS-422/RS-485(2W/4W), Which can be configured by utility Port 2 : RS-232/RS-422/RS-485(2W/4W). Which can be configured by utility
Serial Baud Rate	110 bps to 921.6 Kbps
Data Bits	7, 8
Parity	odd, even, none, mark, space
Stop Bits	1, 1.5, 2
Serial signals	RS-232 :TxD, RxD, DCD, RTS, CTS, DSR, DTR, RI, GND RS-422 :TX+, TX-, RX+, RX-, GND RS-485 (2W): D+, D- RS-485 (4W): TX+, TX-, RX+, RX-, GND
LED Indicators
Power indicator	3 x LEDs, PWR 1, 2, PoE : Green On: Power is on
10/100/1000Base-T(X) RJ45 port indicator	2 x LEDs, LNK/ACT: Green for port LNK/ACT Speed: Amber for port Link at 100Mbps Off for port Link at 1000/10Mbps
WWAN status	Green On : Power is on and functioning Normal
WWAN signal strength	3 x LEDs Green for Strength: 1<30%, 2 >30% <60%, 3>75%
SIM Indicator	Green On: in active
Fault	Power failure or port disconnected
Serial TX/RX LED	Red : Receiving data Green : Transmitting data
R.M.	Reserved
Ring	Reserved
Fault contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Input Power	Dual DC inputs. 12-48VDC on 6-pin terminal block
Power Consumption (Typ.)	18 Watts
Overload current protection	Present
Reverse polarity protection	Present
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	116.4mm W x 170mm D x 154mm H (4.6" W x 6.7" D x 6.1" H)
Weight (g)	2400 g
Environmental
Storage Temperature	-40 to 85oC (-40 to 185oF)
Operating Temperature	-40 to 75oC (-40 to 167oF)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-31
Vibration	IEC60068-2-6
Safety	EN60950-1
MTBF	283297.3193 hours      US : 261406.4413 hours EU : 266562.8536 hours
