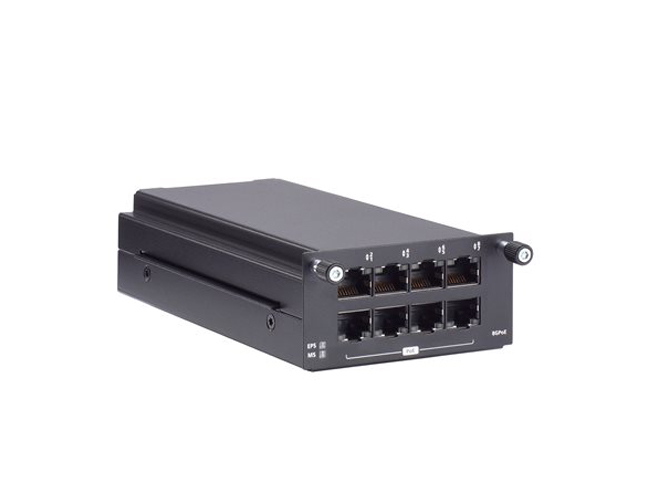

Moxa RM-G4000-PL-8GPoE - Gigabit Ethernet module with 8 100/1000BaseT(X) IEEE 802.3bt PoE ports
by MOXA
|
|
|
|
- -40 to 75°C operating temperature range
- IEC 61850-3 and IEEE 1613 compliant
- Hot-swappable
|
|
|
Moxa RM-G4000-PL-8GPoE
The RM-G4000-PL Module Series is specifically engineered for the IEC 61850-3 RKS-G4000-PL Series rack-mount Ethernet switches, offering high-density Gigabit connectivity. Each module supports up to 8 Gigabit ports with versatile interface options, including 10/100/1000BaseT(X) copper, 100/1000BaseSFP fiber, and IEEE 802.3bt PoE. Designed for mission-critical environments, the RM-G4000-PL series provides ultra-high-capacity PoE functionality, delivering up to 90W per port (with a 240W power budget per module) to effortlessly drive heavy-duty edge devices.
Specifications
- PoE ports (10/100/1000BaseT(X), RJ45 connector): 8
- Note: The PoE function of the RM-G4000-PL-8GPoE module is only available when used with RKS-G4000-PL PoE models.
- Power consumption: 6.5W (max.)
- MTBF time: 3,832,500 hrs
- MTBF standards: Telcordia (Bellcore), GB
|
|
|
|
