SN4141/2ETH2JS2V/EUI - SmartNode VoIP Gateway, 2FXS, 2 VoIP Calls, or 4 SIP-SIP calls (SIP b2b UA) upgradeable (max. 200), Optio
by PATTON
|
|
|
|
- Up to 8 Analog interfaces (FXS/FXO)—2, 4 or 8 Analog ports. Either FXS or FXO or a combo configuration. Up to 8 G.722/G.711 or T.38 calls simultaneously.
- Advanced Local Call Switching—Virtual interfaces and routing tables provide industry leading flexibility in call handling programming.
Local call switching, soft fallback to alternative routes.
Simultaneously connects to multiple SIP services/IP PBXs.
- Network Monitoring—Embedded Patton Cloud network monitoring 24x7.**
- Management & Provisioning—Web Wizard for ease of use, SNMPv3, TR-069, command line interface, secure zero-touch provisioning, separate config. domain, secure provisioning of configuration and software.
- Proprietary OS—Utilizes proprietary Trinity™ software for enhanced security.
- Full VoIP protocol support—SIPv2, SIPv2 over TLS**, T.38, G.722 HD voice, RTP security with SRTP**, fax and modem bypass, DTMF relay.
- Survivability & Local Breakout—Resiliency or local breakout for the enterprise thanks to onboard FXO ports.

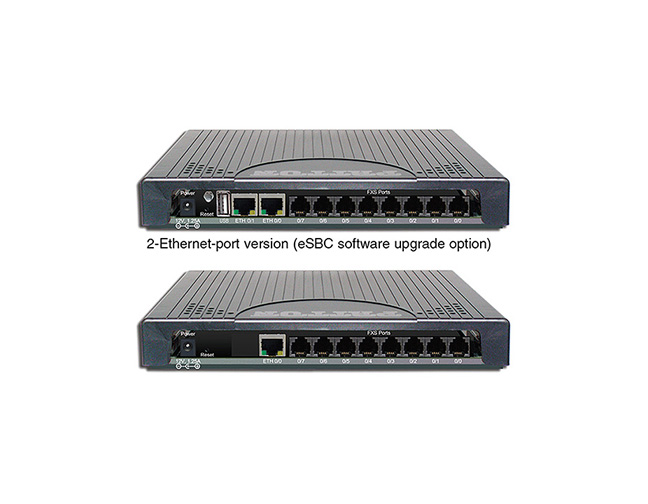

- Optional eSBC upgrade for FXS VoIP Gateways with 2 Ethernet Ports—Models containing ”SN4141/2ETH” can be converted into high performance enterprise session border controllers (eSBC) simply by purchasing a software license. This capability prepares your voice network for next-generation SIP services and security. For details about the upgraded SN4141 eSBC’s capabilities, refer to the model SN5541 eSBC specifications.
- Why SmartNode™?
- Patton Quality
- Made in the USA
- Unrivalled Customer Support
- FREE Support and Upgrades
|
|
|
The Patton Model SN4141-2ETH2JS2V-EUI support up to eight phone or fax calls. The SN4140 is the perfect choice for All-IP applications where either old, non-replaceable telephones have to be integrated into a UCC environment, or for good old fax devices to be migrated to the next-generation network infrastructure.
Patton’s SmartNode 4140 Series delivers the legacy phone interfaces, service transparency, and flexible integration required for All-IP networks.
| Capacity |
Up to 8 simultaneous low- bandwidth voice or HD calls with SRTP or T.38 fax calls |
| Voice Signaling |
- SIPv2 / SIPv2 over TLS** (B2BUA capable, multi instance, simultaneous support of multiple registrars and direct IP dialing)
- SIPv2 over IPv6
- SIP call transfer, redirect
- DTMF in-band & out-of-band
- All tones programmable (dial, ringing, busy)
|
| Voice Processing |
- G.722
- G.711m/A-law
- G.723.1 (6.4 kbps)
- G.729, 729a, 729ab (8 kbps)
- G.726 (16 ,24, 32, 40 Kbps)
- AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2kbps)
- iLBC at 13.33 kbps (SIP-SIP only)
- G.168-2004 echo cancellation (128 ms)
- Up to 8 simultaneous low-bandwidth voice or T.38 fax calls
- Up to 8 HD calls with SRTP
- Up to 200 SIP to SIP calls***
- Up to 4 SIP transcoded calls**
- Silence suppression and comfort noise
- Adaptive and configurabledejitter buffer
- Configurable RTP packet length
|
| Call Switching and Services |
- Regular expression based call routing and number manipulation
- Number blocking
- Short-dialing
- Digit collection, distribution and hunt groups
- Transparent line extension
- Fallback Routing: Soft fall back to alternative route(s)
|
| FXS Connectivity |
- 2-wire Loopstart on RJ-11/12
- EuroPOTS (ETSI EG201188)
- Programmable AC impedance, feeding, ring and onhook voltage
- Caller-ID FSK and ITU V.23/Bell 202 generation
- Long Reach FXS—10 km @ 3REN load - 24AWG wire (0.205mm2)
- Secondary Surge Protection (optional)
|
| FXO Connectivity |
- 2-wire Loopstart—RJ11/12
- Programmable impedance
- Ring detection, tone detection
- Caller ID detection (FXS, DTMF)
- Disconnect supervision
|
| Connectivity |
- One or two 10/100/1000Base-T Ethernet ports
- USB 2.0 host port (/2ETH port version only)
- Auto-MDIX
- DHCP Client
- PPPoE Client (multi-session)
- IP Multi-Netting, VLAN, Secondary IP
- IPv4 and IPv6 - Dual Stack
- ICMP
- Dynamic and static NAT and NAPT
- ACL, Stateful Firewall
- DNS, DynDNS
- DHCP Server
- SNTP Client
|
| Quality of Service |
- Patton Cloud network monitoring**
- Voice priority, DownStreamQoS™
- Traffic Management, shaping policing
- IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling
|
| Management |
- Patton Cloud Orchestrated
- Customizable WebWizard, Web-based GUI, CLI Telnet and HTTP access
- TR-069, TFTP, HTTP, HTTPS configuration up- and download
- TR-069, TFTP, HTTP, HTTPS firmware upgrade, Dual Image
- SNMPv3 agent - MIB II and private MIB
- Separate config domain (LAN side config and WAN side config)
- Built-in diagnostic tools
- Secure Auto-Provisioning with built in root CA
|
| Power Consumption |
< 10W |
| Packaging |
Desktop/Wall-mount plastic chassis |
| Dimensions |
8.2W x 1.3H x 6.5D in. (20.8W x 3.4H x 16.5D cm) |
| Weight |
< 450g (15.9 oz) |
| Environment |
- Operating temperature: 32 to 104°F (0 to 40°C)
- Operating humidity: up to 90%, non-condensing)
- Industrial version available SN4141E
|
| Safety & Compliance |
- EMC compliance: EN55022 and EN55024
- Safety compliance: EN 60950
- CE compliance
- FCC Part 15 Class A
- TBR21 (FXS)
- RoHS
- ITU-T K.21 protection (FXS ports)
|
|
|
