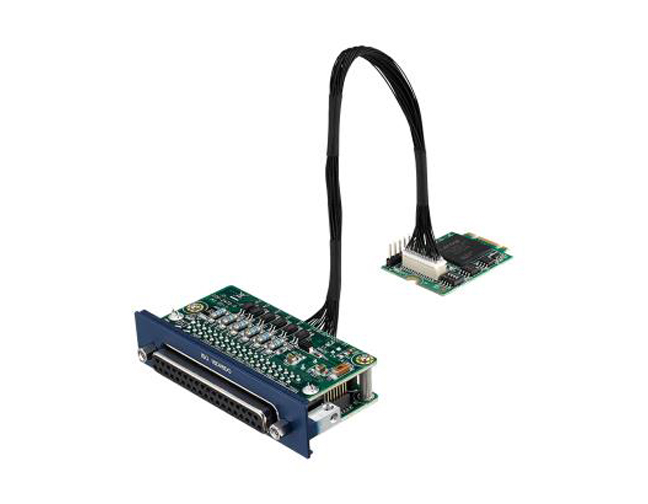

Advantech PCM-37D24DI-AE - 24ch Isolation Digital I/O, 16DI/ 8DO, DB37 x1
by Advantech
|
|
|
|
24-Channel Isolated Digital I/O, M.2 B+M key (3042, PCIe*1), DB37
- Meets Advantech iDoor technology standard
- M.2 2242 B+M Key compliant (PCI Express)
- Supports wide-input/output voltage (10-30 VDC/5-30 VDC)
- High over-voltage-protection (70 VDC) and voltage isolation (2,500 VDC)
- Easy configuration & efficient programming by Advantech DAQNavi
- I/O address automatically assigned by PCIe plug & play
- Keeps the output settings and values after system hot reset
- Compatible with embedded automation PC UNO-1/2/3/4 series
- Compliant with FCC/CE Class A Certification
|
