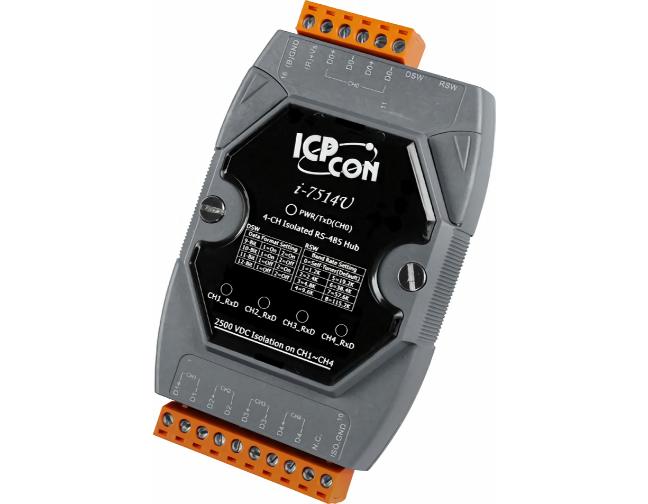

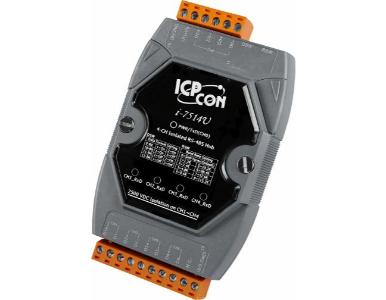

I-7514U - Isolated 4 Channels RS-485 Repeater/Hub/Splitter. Operating Temperatures, -25C ~ +75C by ICP DAS
|
|
|
I-7514U_SUMMARY.html
- True RS-485 Star Wiring Hub
- Independent RS-485 driver for each channel
- LEDs for indicating RS-485 TxD/RxD activity
- Auto Switching baud rate, 300 ~ 115200 bps and fixed baud rate setting via rotary switch, 1200 ~ 115200 bps
- Hubs can be daisy chained for 256 channels
- 120O termination resistor for each channel
- Power Input, +10 ~ +30 VDC
- Operating Temperatures, -25 C ~ +75 C
- DIN-Rail
|
|
|
I-7514U_DESCRIPTION.html
The I-7514U is a 4-ch RS-485 active star wiring hub, it has 4 independent RS-485 output channels and one RS-485 input channel. Each output channel is equipped with an individual driver. The data from a master to the input channel will simultaneously be forwarded to all the four output channels.
|
