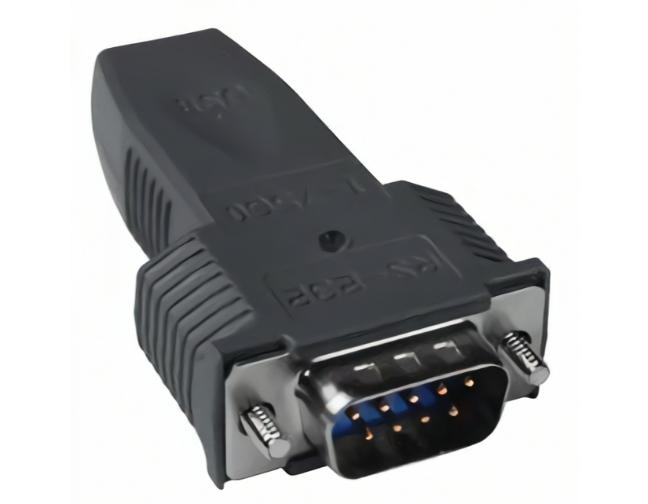

I-7560U - USB to RS-232 Converter for Windows 8 / Windows 8.1. Fully compliant with the USB 1.1/2.0/3.0, transmission speed up t
by ICP DAS
|
|
|
|
I-7560U_SUMMARY.html
I-7560U - USB to RS-232 Converter for Windows 8 / Windows 8.1. Fully compliant with the USB 1.1/2.0/3.0, transmission speed up to 921.6 kbps. Comes with
|
|
|
I-7560U_DESCRIPTION.html
The I-7560U - features a full set of RS-232 modem data and control signals (TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and GND) on its PC compatible DB-9 male connector. It also features a high-speed 115200 bps transmission rate. You do not need a power supply to power this device as the I-7560U can be easily powered from the USB port.
I-7560U.html
| Interface |
| USB |
Fully Compliant with USB
1.1/2.0.3.0 |
| RS-232 |
TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and
GND; non-isolated |
| Speed |
300 ~ 921.6 kbps |
| Connection |
RS-232 |
9-Pin Male D-Sub |
| USB |
Type B |
| Cable Included |
CA-USB18 (1.8 m Cable) x 1 |
| LED Indicators |
| Power |
Yes |
| Power |
| Input Voltage Range |
+5 VDCfrom USB |
| Power Consumption |
0.3 W |
| Mechanical |
| Casing |
Plastic |
| Flammability |
Fire Retardant Materials (UL94-V0 Level)
|
| Dimensions (W x H x D) |
33 mm x 60 mm x 15 mm |
| Environment |
| Operating Temperature |
-25C ~ +75C (-13F ~ +167F) |
| Storage Temperature |
-30C ~ +75C (-22F ~ +167F) |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
