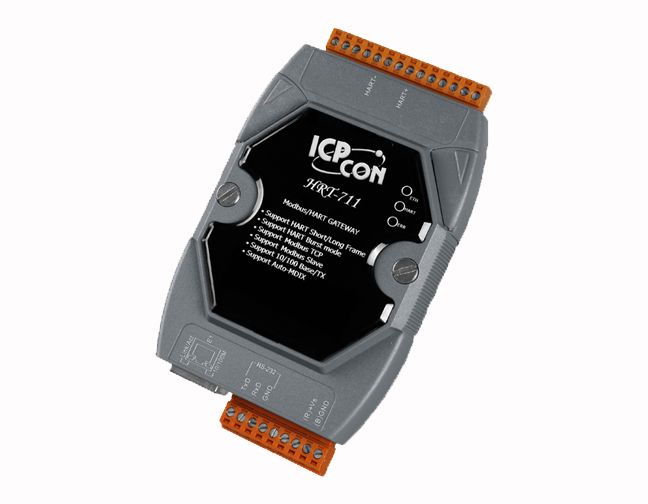

ICP DAS HRT-711 - Modbus/TCP to HART Gateway
by ICP DAS

The HRT-711 Gateway is specially designed for the master device of HART protocol. It allows the Modbus/TCP master device to access the HART slave devices. These HART devices may be a transmitter, an actuator, a current output device and so forth. In addition, we also provide the utility software for users to configure the HRT-711. By using this module, users can integrate their HART devices into Modbus network easily

Ethernet Interface
Controller	10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
Connector	RJ-45 x 1 (LED)
UART Interface (For Configuration
COM Port	RS-232 (3 wires)
Connector	3-pin screwed terminal block
HART Interface
HART Channel	1
HART Interface	2-pin screwed terminal block
HART Device	2-wired or 4-wired HART devices
HART Topology	Point to Point or Multi-Drop
HART Data	Only Digital Data
HART Frame Type	Short and Long Frame
Burst Mode	Supported
Max. HART Device	15
Loop Resistor	250 Ω resistor by Jumper
Isolation	UL1577 Spec.
Power
Power Supply	Unregulated +10 ~ +30 VDC
Protection	Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption	1 W
Mechanism
Installation	DIN-Rail or Wall Mounting
Dimensions	72 mm x 35 mm x 121 mm (W x L x H) Detail
Environment
Operating Temperature	-25 ℃ ~ +75 ℃
Storage Temperature	-30 ℃ ~ +85 ℃
Humidity	5% ~ 95% RH, non-condensing

HRT-711.pdf

537 K
