04031880 IOLAN SDS1T G9 Secure Device Server: 1 x DB9M connector with software selectable RS232/422/485 interface, Extended Temp
by PERLE

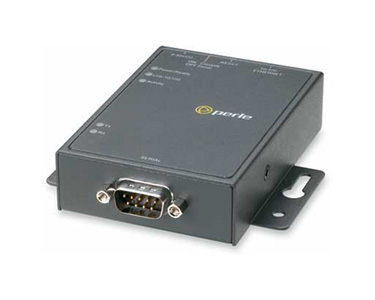

04031880 IOLAN SDS1T G9 Secure Device Server. The IOLAN SDS1T G9 Device Servers address the need for connecting remote serial devices that operate in extreme temperatures to an enterprise IP network. The IOLAN SDST will operate in industrial grade temperatures the parameters of which are -40F to +165F (-40C to +74C). Serial based equipment found with traffic management, oil and gas pipelines, weather tracking and other remote applications must function in temperatures that cannot be supported by commercial based serial device servers. Boasting this extended temperature feature along with a rugged steel casing, the IOLAN SDST enables administrators to securely access remote serial console ports on equipment subjected to harsh environments and severe temperatures such as security cameras, alarms, traffic controllers, sensors and tracking devices through an IP network.

Why IOLAN SDST Device Servers are the preferred choice:

• Powerful processors for the best throughput and performance on the market
• Operation in environments requiring extended ambient operating temperatures on -40C to +74C (-40F to +165F).
• TrueSerial® packet technology delivers the most authentic serial connections across Ethernet for serial protocol integrity
• Indicators for network and serial interfaces for easy troubleshooting
• Plug & Play installation utility eliminates configuration hassles for all IOLAN's on your IP network
• TruePort – Perle’s com/tty redirector for serial based applications operates on Windows, Vista, Linux, Solaris, SCO and Unix
• FIPS 140-2 – Cryptographic modules meet US Government NIST compliancy
• Power over serial cable eliminates costs of a separate power installation
• Next Generation IP support ( IPv6 ) for investment protection and network compatibility
• Compact and protective solid steel enclosure for tabletop, wall mount or DIN rail mounting
• Java-free browser access to remote serial console ports via Telnet and SSH
• Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear

Secure Serial to Ethernet Connectivity

The IOLAN SDST Device Server enables administrators to securely access remote serial console ports on equipment such as PBX, servers, routers, network storage equipment and security appliances through an IP network. Sensitive data is protected through standard encryption tools such as Secure Shell (SSH) and Secure Sockets Layer (SSL). Access by authorized users is assured via authentication schemes such as RADIUS, TACACS+, LDAP, Kerberos, NIS and RSA Security's SecurID tokens.

By using encryption technologies, an IOLAN can protect sensitive and confidential data from a serial device before being sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices, all of the major encryption ciphers such as AES, 3DES, RC4, RC2 and CAST128 are fully supported.

Recognized as the most secure method for communicating to remote private networks over the Internet, the IPSec standard provides robust authentication and encryption of IP packets at the network layer of the OSI model. As a standard it is ideal for multi-vendor interoperation within a network providing flexibility and the ability to match the right solution for a particular application.

IOLAN Plug-ins

By choosig a Perle IOLAN Device Server you can rest assured that virtually any device with a serial COM port will operate in conjunction with your desired application exactly as it did when you had it directly connected. In the unlikely event that the Perle IOLAN Device Server does not enable this out of the box, Perle will make it work.

Perle IOLAN Device Servers utilize customer installable "Device Plug-ins" to successfully network devices where other solutions have failed. Request a free engineering consultation now.

Advanced IP Technology

With support for Next Generation IP (IPv6) the IOLAN Serial to Ethernet Device Server range provides organizations with investment protection to meet this rapidly growing standard.

Demand for IPv6, which is compatible with IPv4 addressing schemes, is driven by the need for more IP address. With the implementation and rollout of advanced cellular networks, a robust method is needed to handle the huge influx of new IP addressable devices on the Internet. In fact, the US Department of Defense has mandated that all equipment purchased be IPv6 compatible. In addition, all major Operating Systems such as Windows, Linux, Unix and Solaris, as well as routers, have built-in support for IPv6.

It is therefore important for end users and integrators to select networking equipment that incorporates the IPv6 standard. The IOLAN line with support for IPv6 already built in, is the best choice in serial to Ethernet technology.

Flexible and Reliable Serial to Ethernet Connections

An IOLAN SDST Device Server is ideal for connecting serial based COM port, UDP or TCP socket based applications to remote devices. Perle’s TruePort re-director provides fixed TTY or COM ports to serial based applications enabling communication with remote devices connected to Perle IOLAN's either in encrypted or clear text modes. You can also tunnel serial data between devices across an IP network.

Perle's Device Management software provides better centralized control of multiple units resulting in maximum uptime for your remote equipment.

All IOLAN SDST models have added protection against electrostatic discharges and power surges with robust 15Kv ESD protection circuitry enabling organizations to utilize this solution in the field with confidence.

Hardware Specifications - IOLAN SDST - 1, 2 and 4 port Extended Temperature Device Servers

	IOLAN SDS1 T	IOLAN  SDS2 T	IOLAN SDS4 T	IOLAN  SDS1T G	IOLAN  SDS2T G	IOLAN  SDS4T G
Processor	MPC852T, 66 Mhz, 87 MIPS			600 MHz ARM processor
Memory
RAM MB	32			512
Flash MB	8			4000
Interface Ports
Number of Serial Ports	1	2	4	1	2	4
Serial Port Interface	Software selectable EIA232/422/485 on DB9M	Software selectable EIA-232/422/485 on RJ45		Software selectable EIA232/422/485 on DB9M	Software selectable EIA-232/422/485 on RJ45
Sun / Solaris	Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds	50bps to 230Kbps with customizable baud rate support			300bps to 230Kbps with customizable baud rate support
Data Bits	5,6,7,8, 9-bit protocol support
Parity	Odd, Even, Mark, Space, None
Flow Control	Hardware, Software, Both, None
Serial Port Protection	15Kv Electrostatic Discharge Protection ( ESD )
Local Console Port	RS232 on Serial Port
Network	10-base T / 100-base TX Ethernet RJ45			Autosensing 1000-base-T / 100-base TX / 10-base T Auto-MDIX
	Software selectable Ethernet speed 10/100 Auto			Software selectable Ethernet speed 10/100/1000 Auto
	Software selectable Half/Full/Auto duplex
Ethernet Isolation	1.5Kv Magnetic Isolation
Power
Power Supply Options	Supplied with Barrell Connector 610mm (24 in)
	Power via External power 9-30v DC, 4.8 Watts uses standard 5.5mm x 9.5mm x 2.1mm barrel socket, Power IN over serial cable
Nominal Input Voltage	12v DC / 24v DC
Input Voltage Range	9-30v DC
Power IOLAN over serial	9-30v DC
Power External Device via Serial Port	+5v DC regulated, 1W max
Typical Power Consumption '@ 12v DC ( Watts )	1.7	2.1	2.4	1.9	2	2
	Does not include power for devices connected to serial port
Indicators
LEDs	Power/Ready
	Network Link
	Network Link activity
	Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output ( BTU/HR )	5.8	7.2	8.2	6.8	8.9	16.38
MTBF ( Hours )	555,099	347,364	118,466	303,984	268,101	168,394
	Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
Operating Temperature	-40C to 74C, -40F to 165F
Storage Temperature	-40C to 85C, -40F to 185F
Humidity	5 to 95% (non condensing) for both storage and operation.
Case	SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating	IP40
Mounting	Wall or Panel mounting, DIN Rail mounting kit optional
Product Weight and Dimensions
Weight	0.23 Kg (0.5 lbs)				0.35 Kg (.77 lbs)
Dimensions	90 x 64 x 22 (mm), 3.6 x 2.5 x 0.87 (in) case dimensions not including mounting tabs,		112 x 82 x 28 (mm), 4.4 x 3.2 x 1.1 (in) case dimensions not including mounting tabs,	90 x 64 x 22 (mm), 3.6 x 2.5 x 0.87 (in) case dimensions not including mounting tabs,		112 x 82 x 28 (mm), 4.4 x 3.2 x 1.1 (in) case dimensions not including mounting tabs,
	90 x 89 x 24 (mm), 3.6 x 3.5 x 0.87 (in) includes mounting tabs.		112 x 105 x 28 (mm), 4.4 x 4.2 x 1.1 (in) case dimensions not including mounting tabs,	90 x 89 x 24 (mm), 3.6 x 3.5 x 0.87 (in) includes mounting tabs.		112 x 105 x 28 (mm), 4.4 x 4.2 x 1.1 (in) case dimensions not including mounting tabs,
Packaging
Shipping Dimensions	260 x 170 x 70 (mm), 10.2 x 6.7 x 2.8 (in)
Shipping weight	0.42 KG (.92 lbs)		0.54 KG (1.2 lbs)	0.42 KG (.92 lbs)		0.54 KG (1.2 lbs)
Regulatory Approvals
Emissions	CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A			CFR47 FCC Part 15 Subpart B:2015
	ICES-003, Issue 4, February 2004 (Canada)			ICES-003:2016 Issue 6:2016
	CISPR 32:2015/EN 55032:2015 (Class A)
				CISPR 16-2-3:2010/A2:2014
	EN61000-3-2 : 2010, Limits for Harmonic Current Emissions			EN61000-3-2:2014, Limited for Harmonic Current Emissions
	EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker			EN61000-3-3:2013, Limits of Voltage Fluctuations and Flicker
Immunity	CISPR 24:2010/EN 55024:2010
	EN61000-4-2: Electrostatic Discharge
	EN61000-4-3: RF Electromagnetic Field Modulated
	EN61000-4-4: Fast Transients
	EN61000-4-5: Surge
	EN61000-4-6: RF Continuous Conducted
	EN61000-4-8: Power-Frequency Magnetic Field
				EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety	IEC 60950-1 (ed 2); am1 am2 and EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013			IEC 62368-1 and EN 62368-1:2014
	CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, Second Edition			CAN/CSA-C22.2 No. 62368-1-14 and UL 62368-1
Other	Reach, RoHS and WEEE Compliant Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012
	CCATS - G168387
	ECCN - 5A992
	HTSUS Number: 8471.80.1000
	Perle Limited Lifetime Warranty

Serial Connector Pinout
IOLAN DTE DB9 Socket	IOLAN DB9M Socket	Direction	RS232	RS485 Full Duplex	RS485 Half Duplex	RS422
	1		DCD	-	-	-
	2		RxD	RxD+	-	RxD+
	3		TxD	TxD+	DATA+	TxD+
	4		DTR	-	-	-
	5		GND	GND	GND	GND
	6		DSR	RxD-	-	RxD-
	7		RTS	-	-	-
	8		CTS	-	-	-
	9		-	TxD-	DATA-	TxD-
IOLAN DTE RJ45 Socket	IOLAN RJ45 Socket	Direction	RS232	RS485 Full Duplex	RS485 Half Duplex	RS422
	1		Power In	Power In	Power In	Power In
	2		DCD	-	-	-
	3		RTS	TxD+	DATA+	DATA+ TxD+
	4		DSR	-	-	-
	5		TxD	TxD-	DATA-	TxD-
	6		RxD	RxD+	-	RxD+
	7		GND	GND	GND	GND
	8		CTS	RxD-	-	RxD-
	9		DTR	-	-	-
	10		Power Out	Power Out	Power Out	Power Out
Optional Perle adapters for use with straight thru CAT5 cabling
