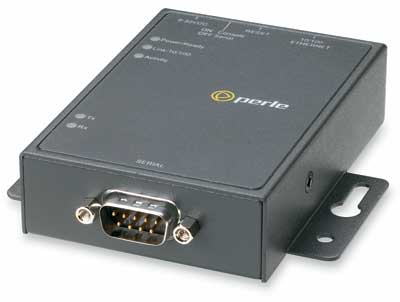

04030610 IOLAN SDS1T Secure Device Server ( Terminal Server )- 1 x DB9M connector, Extended Temperature, pigtail power connector by PERLE

04030610 IOLAN SDS1T Secure Device Server ( Terminal Server )- 1 x DB9M connector, Extended Temperature, pigtail power connector
by PERLE
Write a review Write a review
  • 1 software selectable RS232/422/485 serial port interfaces
  • -40F to +165F (-40C to +74C) extended temperature support
  • 10/100 Ethernet
  • Advanced security features for data encryption, user authentication and event management
Mfg SKU # : 04030610
List Price : $893.00
Our Price : $760.00
Stock : 2
Quantity :

The IOLAN SDST Device Servers address the need for connecting remote serial devices that operate in extreme temperatures to an enterprise IP network. The IOLAN SDST will operate in industrial grade temperatures the parameters of which are -40F to +165F (-40C to +74C). Serial based equipment found with traffic management, oil and gas pipelines, weather tracking and other remote applications must function in temperatures that cannot be supported by commercial based serial device servers. Boasting this extended temperature feature along with a rugged steel casing, the IOLAN SDST enables administrators to securely access remote serial console ports on equipment subjected to harsh environments and severe temperatures such as security cameras, alarms, traffic controllers, sensors and tracking devices through an IP network.

Why IOLAN SDST Device Servers are the preferred choice:

  • High performanc 66Mhz, 87 MIPS processor for the best performance on the market
  • Operation in environments requiring extended ambient operating temperatures on -40C to +74C (-40F to +165F).
  • TrueSerial® packet technology delivers the most authentic serial connections across Ethernet for serial protocol integrity
  • Indicators for network and serial interfaces for easy troubleshooting
  • Plug & Play installation utility eliminates configuration hassles for all IOLAN's on your IP network
  • TruePort – Perle’s com/tty redirector for serial based applications operates on Windows, Vista, Linux, Solaris, SCO and Unix
  • FIPS 140-2 – Cryptographic modules meet US Government NIST compliancy
  • Power over serial cable eliminates costs of a separate power installation
  • Next Generation IP support ( IPv6 ) for investment protection and network compatibility
  • Compact and protective solid steel enclosure for tabletop, wall mount or DIN rail mounting
  • Java-free browser access to remote serial console ports via Telnet and SSH
  • Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
  IOLAN SDS1 T
Processor MPC852T, 66 Mhz, 87 MIPS
Memory
RAM MB 32
Flash MB 8
Interface Ports
Number of Serial Ports 1
Serial Port Interface Software selectable EIA232/422/485 on DB9M
Sun / Solaris Sun / Oracle ‘Solaris' Safe - no "break signal" sent during
power cycle causing costly server re-boots or downtime
Serial Port Speeds 50bps to 230Kbps with customizable baud rate support
Data Bits 5,6,7,8, 9-bit protocol support
Parity Odd, Even, Mark, Space, None
Flow Control Hardware, Software, Both, None
Serial Port Protection 15Kv Electrostatic Discharge Protection ( ESD )
Local Console Port RS232 on Serial Port
Network 10-base T / 100-base TX Ethernet RJ45
Software selectable Ethernet speed 10/100 Auto
Software selectable Half/Full/Auto duplex
Ethernet Isolation 1.5Kv Magnetic Isolation
Power
Power Supply Options Supplied with Barrell Connector 610mm (24 in)
Power via External power 9-30v DC, 4.8 Watts uses standard 5.5mm x 9.5mm x 2.1mm barrel socket,
Power IN over serial cable
Nominal Input Voltage 12v DC
Input Voltage Range 9-30v DC
Power IOLAN over serial 9-30v DC
Power External Device via Serial Port +5v DC regulated, 1W max
Typical Power Consumption
@ 12v DC ( Watts )		 1.7
(does not include
power for devices
connected to serial port
Indicators
LEDs Power/Ready
Network Link
Network Link activity
Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output
( BTU/HR )		 5.8
MTBF ( Hours )* 555,099
Operating Temperature -40C to 74C, -40F to 165F
Storage Temperature -40C to 85C, -40F to 185F
Humidity 5 to 95% (non condensing) for both storage and operation.
Case SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating IP40
Mounting Wall or Panel mounting, DIN Rail mounting kit optional
Product Weight and Dimensions
Weight 0.23 Kg (0.5 lbs)
Dimensions 91 x 64 x 24 (mm), 3.6 x 2.5 x 0.92 (in)
case dimensions not including mounting tabs,
91 x 89 x 24 (mm), 3.6 x 3.5 x 0.92 (in)
includes mounting tabs
Packaging
Shipping Dimensions 25.5 x 16.5 x 6.5 (cm), 10 x 6.5 x 2.6 (in)
Shipping weight 0.75 Kg including Power Adaptor
Regulatory Approvals
Emissions FCC Part 15, Subpart B, Class A
CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
ICES-003, Issue 4, February 2004 (Canada)
EN55022:1998 + A1:2000 + A2:2003 Class A
EN61000-3-2 : 1995, Limits for Harmonic Current Emissions
EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker
Immunity EN55024:1998 + A1:2001 + A2:2003
EN61000-4-2: Electrostatic Discharge
EN61000-4-3: RF Electromagnetic Field Modulated
EN61000-4-4: Fast Transients
EN61000-4-5: Surge
EN61000-4-6: RF Continuous Conducted
EN61000-4-8: Power-Frequency Magnetic Field
EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety IEC 60950-1 : 2005 (2nd Edition) + A1 : 2009 and
EN 60950-1 : 2006 + A11 : 2009
CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1,
First Edition April 1st 2003 (Recognized Component)
Other Reach, RoHS and WEEE Compliant
CCATS - G052929
ECCN - 5A992A
HTSUS Number: 8471.80.1000
Perle Limited Lifetime Warranty
Serial Connector Pinout

IOLAN DTE

DB9 Socket
IOLAN DB9M Socket Direction RS232 RS485 Full Duplex RS485 Half Duplex RS422
1 in DCD - - -
2 in RxD RxD+ - RxD+
3 out TxD TxD+ DATA+ TxD+
4 out DTR - - -
5
line
 GND GND GND GND
6 in DSR RxD- - RxD-
7
line
 RTS - - -
8 in CTS - - -
9
line
 - TxD- DATA- TxD-
